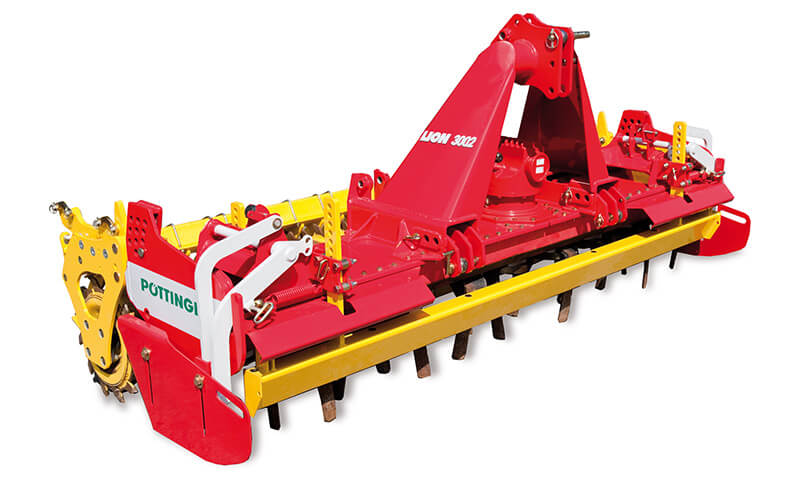

Lion

Professional Power Harrows with Massive Tapered Roller Bearings.

180-300 HP

Download Brochure Enquire Now

Product Enquiry: Lion

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • One piece “DUAL” tines 18mm X 320mm made from fine grain steel
  • 1000 R.P.M Standard – Rotor speed 342 R.P.M
  • Rear Levelling Bar
  • PTO Cam Clutch (Integrated in Gearbox on 30001A,4001A Models)
  • Multispeed Gearbox with pick off Gears
  • Thick walled Fine Grain Steel gear pan for maximum durability and life
  • Gear trough slanted downwards – eliminates soil scraping under gear pan
  • Tine carriers integrated into Casing so are protected from stones.
  • Tine Carriers fully protected so trash can not Wrap around rotors
  • Bearings are Tightly sealed with Labyrinth seals and shaft seals

MUST ADD REAR ROLLER TO BELOW

Specifications

Model Working Width No. Rotors & Tines Max HP Type
LION 251 2.5m 8 180 Hp Fixed
LION 301 3.0m 10 180 Hp Fixed
LION 3001 3.0m 10 210 Hp Fixed
LION 4001 4.0m 14 250Hp Fixed
