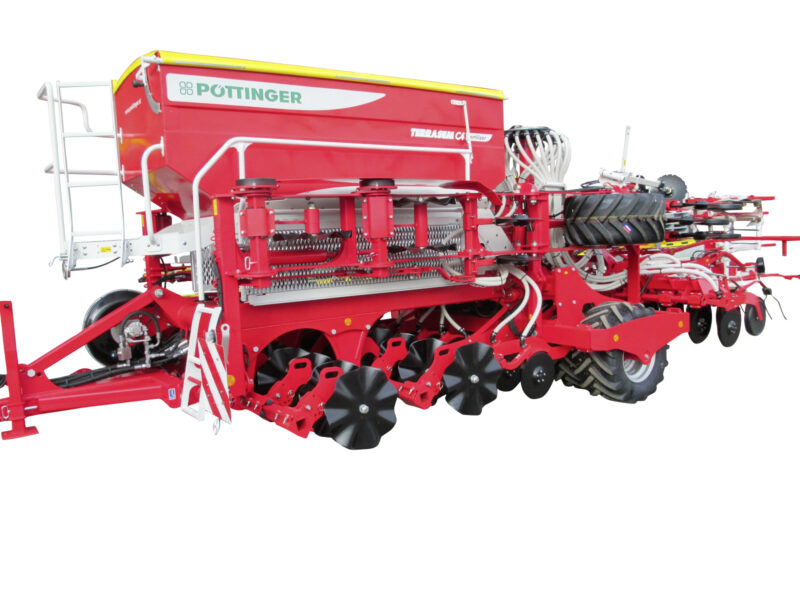

Terrasem

Trailed mulch seed drills with high outputs offering working widths between 4 m and 9 m.



**Indent Order Only – Enquiries Welcome **

Hydraulic Folding Frame

Download Brochure Enquire Now

Product Enquiry: Terrasem

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Universal seed drill suitable for minimum till and cultivated soil drilling
  • Front Hydraulic depth adjustable disc harrows for soil and trash inversion
  • Rubber mounted Disc and Disc Coulter suspension
  • Hydraulic Fold 4.0m (4000 TK ) for narrow 3.0m transport. 3000 T Fixed frame
  • Scalloped Single Disc seed coulters and rear rubber mounted press wheels
  • Large Hydraulically – Adjustable Packer tyre chassis
  • Rear trailing seed covering tine harrow
  • Hydraulic adjustable Seed disc coulter pressure from 40kg to 80kg
  • Calibration Kit (Scales, Tray etc) (NZ STD SPEC)
STANDARD LINE STANDARD EQUIPMENT:
  • Power Control controller
  • Hydraulic fan with Load sensing (NZ SPEC)
PROFI LINE STANDARD EQUIPMENT:
  • ISO ISOBUS Compatible
  • Electronic-Hydraulic seed metering
  • Electronic Calibration and variable-seed Flow rate control
  • Hydraulic fan with Load sensing

Specifications

  TERRASEM C4 TERRASEM C6 TERRASEM C8 TERRASEM C9
Working width 13’1” (4 m) 19’8” (6 m) 26’3” (8 m) 29’6” (9 m)
Transport width 9’10” (3 m) 9’10” (3 m) 9’10” (3 m) 9’10” (3 m)
Transport height 8’9” (2,66 m) 9’10” (3 m) 13’1” (3,98 m) 14’7” (4,45 m)
Power requirement 140 hp 190 hp 300 hp 300 hp
Number of rows 32
24 pcs.
48
36 pcs.
64
48 pcs.
72
54 pcs.
Press wheel diameter 1’3” (380 mm) 1’3” (380 mm) 1’3” (380 mm) 1’3” (380 mm)
Seed hopper volume 3000 l 3000 l 4000 l 4000 l
Oil flowrate for fan drive 25 l 25 l 32 l 32 l
No. of centre press wheels 8 pcs. 12 pcs. 16 pcs. 18 pcs.
Metering wheel drive Electrical Electrical Electrical Electrical
