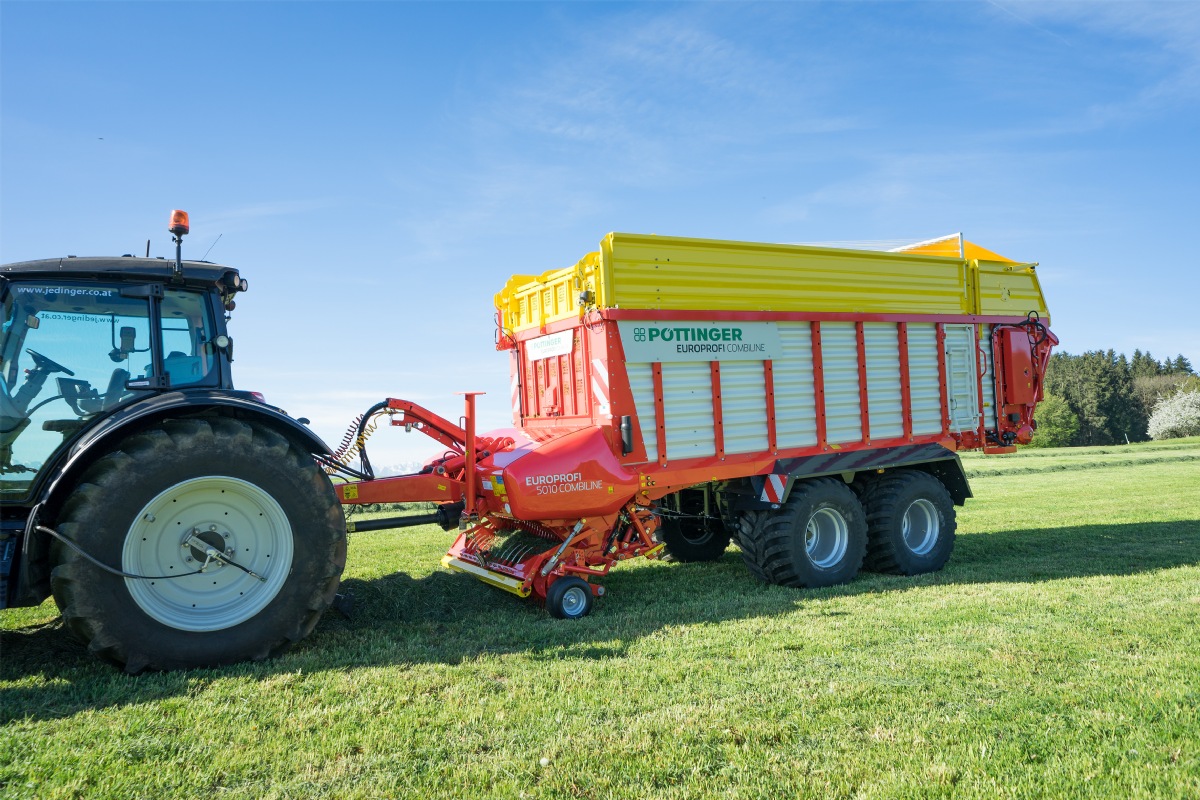

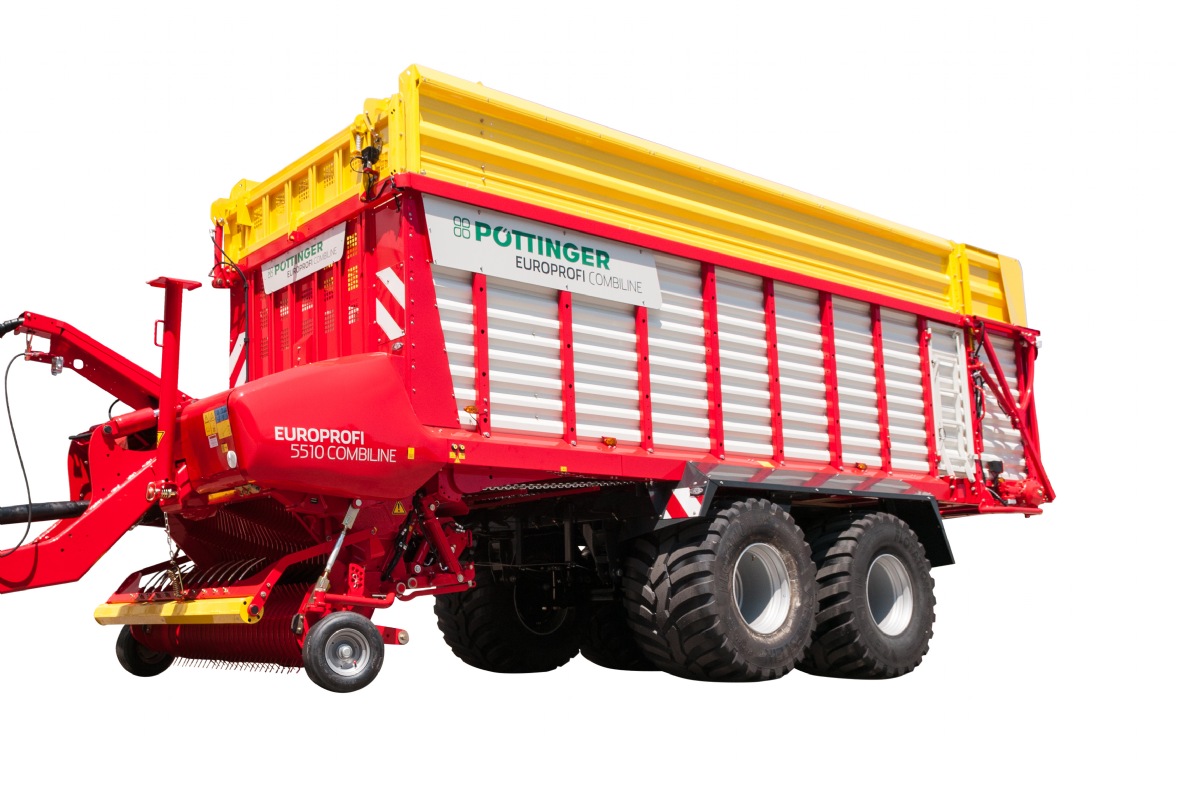

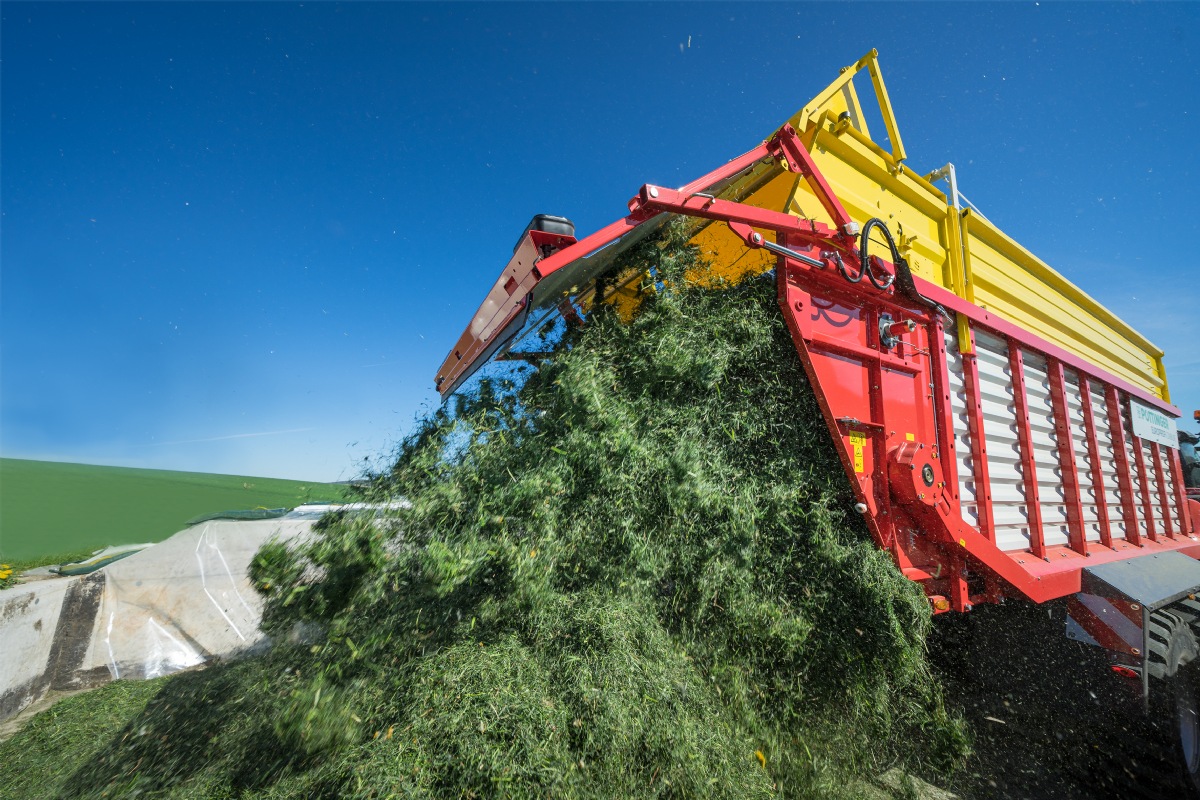

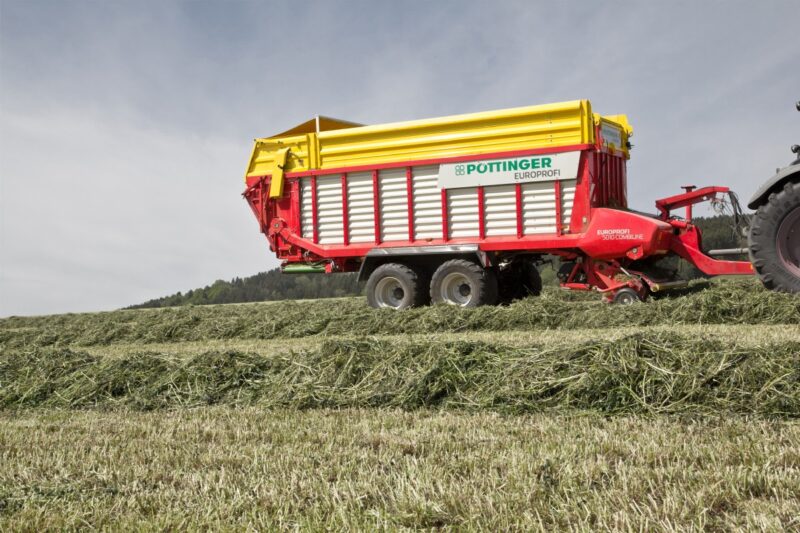

EuroProfi

Silage Loader Wagons Rotary Chain Driven (Auto Lube)

L: Rear Tail Door

D: Rear Beaters

120-180 HP

Download Brochure Enquire Now

Product Enquiry: EuroProfi

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

2 in 1 silage/harvesting combination loader wagon

Suiting tractors of 150 to 220 HP ratings

Ideal loader wagon for the larger size farming or medium size for contracting operations.

Also available with rear cross conveyor for cut and carry operations



  • Easy Pivoting Knife bank & Hydraulic Swing In/Out (NZ Std Spec)
  • Pick-up c/w 6 rows of tines & Swath roller (NZ Std Spec)
  • Steered pneumatic Pick – Up wheels 16×650-8
  • 800mm ROTARY Spiral compression rotor with 8 rows of fingers
  • 31 Knifes 45mm Cut Length – Auto Loading system (NZ Std Spec)
  • Wide angle PTO with Cam-Clutch 1000RPM 1600Nm Torque
  • Tandem axle with Hydrulic brakes (Optional Steering Axle) 17 Ton rated
  • Scraper floor with double chain drive & adjustable speed Forward/Reverse
  • Side access Door with Ladder and Mudguards (NZ Std Spec)
  • Metal sections galvanised and powder coated
  • Load Sensing Hydraulics for power saving (NZ Std spec)
  • Low Hitch Drawbar (NZ Std Spec)
  • Direct Control Std on “L” Models and Std on “D” Models

Specifications

MODELDin. CAPACITY (M)Full. CAPACITY (M)PICK UP (M)TYRES (NZ Std Spec)
Europrofi 4500 L28.545m³1.85560/45 R22,5
Europrofi 4500 D2845m³1.85560/45 R22,5
Europrofi 5000 L31.5A & B1.85560/45 R22,5
Europrofi 5000 D3150m³1.85560/45 R22,5
