TOP

Single Rotor Rakes

Working Widths from 3.8m - 4.6m

Download Brochure Enquire Now

Product Enquiry: TOP

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

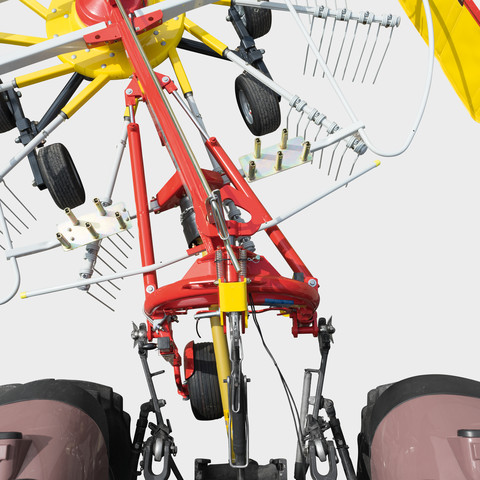

  • Pivoting Headstock for smooth cornering
  • Large Long life Rotor / adjustable cam track / hardened steel cam rollers
  • Huge Cam track and rotor arm support for lower tine and bearing stress
  • Tandem rotor axle bogie wheels 16×6.5-8 (NZ Std Spec)
  • P.T.O. with Overload protection Clutch
  • Optional: Front jockey wheels for superior contour following

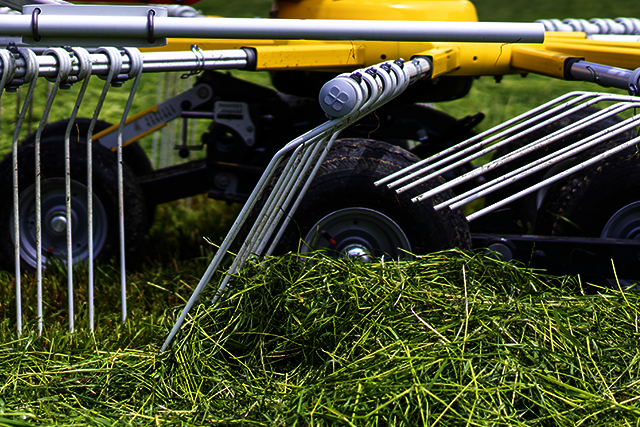

  • Tangential Control of Tine arms, Closed zero maintenance rotor
  • High quality powder coated paint finish
  • Twin shock absorbers for hilly areas (NZ Std Spec)

Specifications

Model Working Width No. Arms Rotor Axle Transport Width Weight
Top 382 3.8M 11 TANDEM 1.95m 535 kg
Top 462 4.6M 12 TANDEM 2.29m 765 kg
