When it comes to mower development, most attention tends to focus on cutting width, conditioning systems and output. Yet one of the greatest challenges facing mower designers remains something far more fundamental.
Keeping the cutter bar in the right position relative to the ground.
It sounds simple enough, but as operating speeds increase and machines are expected to perform across increasingly varied terrain, maintaining cutting height becomes considerably more difficult. Every hollow, ridge, wheel track and contour changes places and demands on the mower suspension system. The better the mower can react, the more consistent the cut and the less stress is placed on both the machine and the ground beneath it.

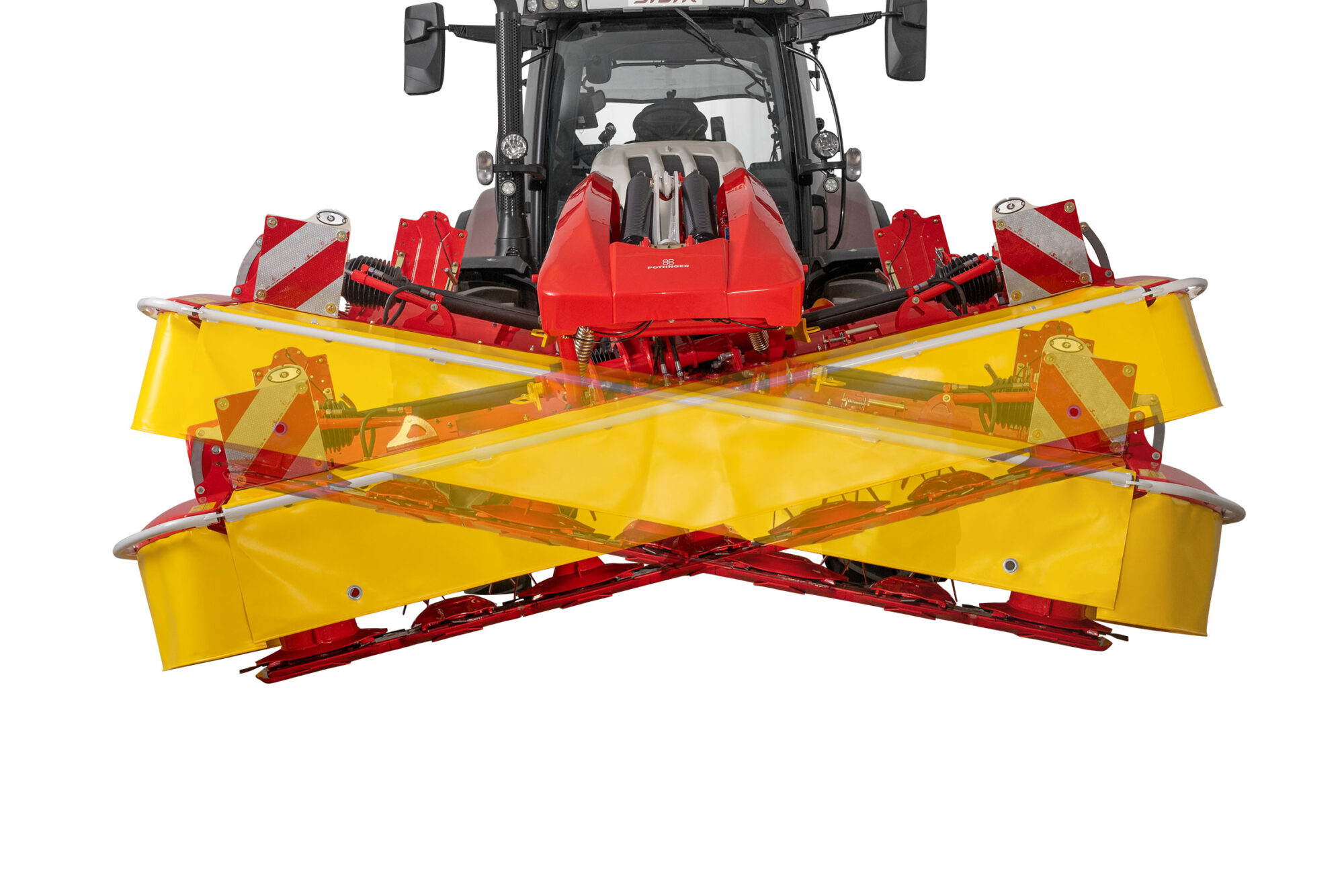

Alpha Motion 19Degree Transverse side-to-side movement

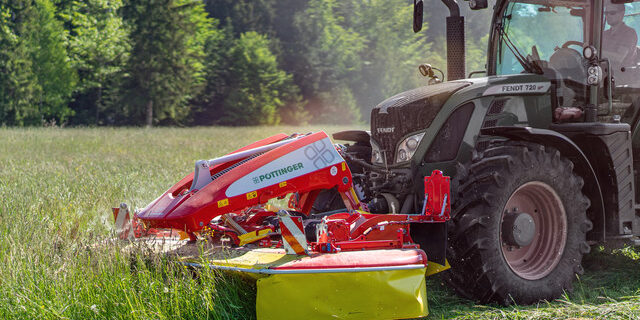

That challenge sits at the center of the Pottinger Novacat Alpha Motion Pro.
Rather than focusing solely on the cutter bar, Pottinger has spent decades refining the way the entire mower interacts with the ground. The result is a front-mount mower platform built around one of the most distinctive suspension systems currently available.
At the heart of the Alpha Motion Pro is what Pottinger describes as an active support frame. Unlike many conventional front mower designs where the cutter bar pivots beneath a relatively fixed mounting structure, the Alpha Motion allows the mower and support frame to move together as a complete assembly.
The practical result is a mower that is constantly adapting to terrain changes rather than simply reacting to them.
As the tractor moves across uneven ground, the ground support frame actively follows the contour. The cutter bar raises over humps and drops into hollows while maintaining a more consistent working position relative to the soil surface. This movement is achieved through sophisticated linkage geometry that allows the mower to operate through a vertical range of -9degrees and +12 degrees.
For operators working on rolling country, that capability can make a significant difference.
Maintaining cutting consistency across variable terrain has traditionally involved compromise. Either the mower is set aggressively and risks scalping, or it is set conservatively and leaves valuable crop behind; the Alpha Motion concept aims to reduce that compromise by allowing the mower to remain closer to its intended working height throughout the full range of movement.
The suspension system itself is equally important.
Two large suspension springs are integrated directly into the headstock assembly. Rather than simply supporting machine weight, these springs provide continuous weight alleviation throughout the mower’s working range. Ground pressure therefore remains more consistent as the mower moves through the changing terrain.
From an engineering perspective, this is one of the key strengths of the system. Weight transfer remains stable regardless of mower position, helping prevent loading of the cutter bar while reducing pressure on the soil surface.
The mowers ability to follow the ground is further enhanced through gimbal-mounted linkage arms that provide an impressive +/-16degrees of transverse movement.
This side-to-side articulation allows the cutter bar to remain aligned with uneven terrain without placing excessive strain on the frame structure. For New Zealand operators dealing with rolling paddocks and varying contours, this additional freedom of movement provides another layer of ground-following capability.
An often overlooked benefit of the Alpha Motion design lies within the driveline itself.
Because mower movement occurs largely within a vertical plane, telescoping movement within the PTO shaft is significantly reduced. Minimizing PTO movement reduces dynamic loading on driveline components and contributes to smoother power transfer throughout the system.
Reduced stress on driveline components can have a direct impact on durability, particularly for contractors covering large workloads.
The cutter bar itself reflects the same engineering-first approach.
Manufactured in Austria, Pottinger’s cutter bar has been developed around low profile design intended to maximize ground tracking and crop flow. Measuring only 4cm in height and 28cm in width the cutter bar presents a remarkably flat profile to the ground.
That low profile allows the mower to operate closer to the terrain while reducing drag and helping maintain a consistent cutting height.
Integrated cleaning paddles prevent material build-up on the cutter bar surface, while the blade layout has been designed to create overlapping cutting paths across the full working width. The blades rotate closest to both the cutter bar surface and the counter knife, producing a clean and uniform cutting action.

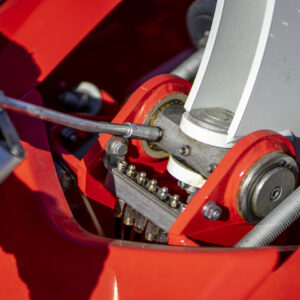

Alpha Motion – Greasing Bank
Power transmission within the cutter bar is handled through Pottinger’s TriDrive system.
Rather than relying on smaller gear arrangements, the TriDrive design uses large spur gears operating in a straight line configuration. three gear teeth remain engaged simultaneously during operation, spreading loads across multiple contact points and reducing stress concentrations within the driveline. the gears operate within an oil bath and feature specifically ground surfaces to promote smooth running and minimize wear.
Durability has also been engineered into the cutter bar structure itself.
High-strength stub shafts are bolted directly to the gears, making replacement straightforward if required. Twin-race taper bearings provide additional load-carrying capability, while the modular construction allows gear and bearing assemblies to be removed as complete units during servicing.
This modular approach reflects an increasing trend in agricultural machinery design where maintainability is considered alongside performance.
The Alpha Motion Pro also offers considerable flexibility through its conditioning options.
Operators can specify either the ExtraDry tine conditioner or the Roller conditioner belt system depending on crop requirements. The tine conditioner uses hardened steel V-shaped tines to aggressively condition forage and accelerate moisture loss, while the roller conditioner employs intermeshing rollers designed to crimp stems without causing excessive leaf damage in sensitive crops such as lucerne and clover.
Recent updates to the Alpha Motion Pro platform have focused heavily on usability. A folding front guard provides improved access to the cutter bar, suspension adjustment has been simplified, and centralized greasing points reduce routine maintenance requirements. Optional hydraulic side guard folding further improves convenance during transport and field changes.
Ultimately, what sets the Novacat Alpha Motion Pro apart is not a single feature but the way multiple engineering solution work together.
The active support frame advance d suspension geometry, gimbal movement, low profile cutter bar and TriDrive transmission system all contribute towards the same objective: maintaining cutter bar position as accurate as possible regardless of the terrain.
For operators demanding consistent mowing performances across New Zealand’s often challenging conditions, that engineering focus is where the Alpha Motion Pro establishes its reputation.
