Hit

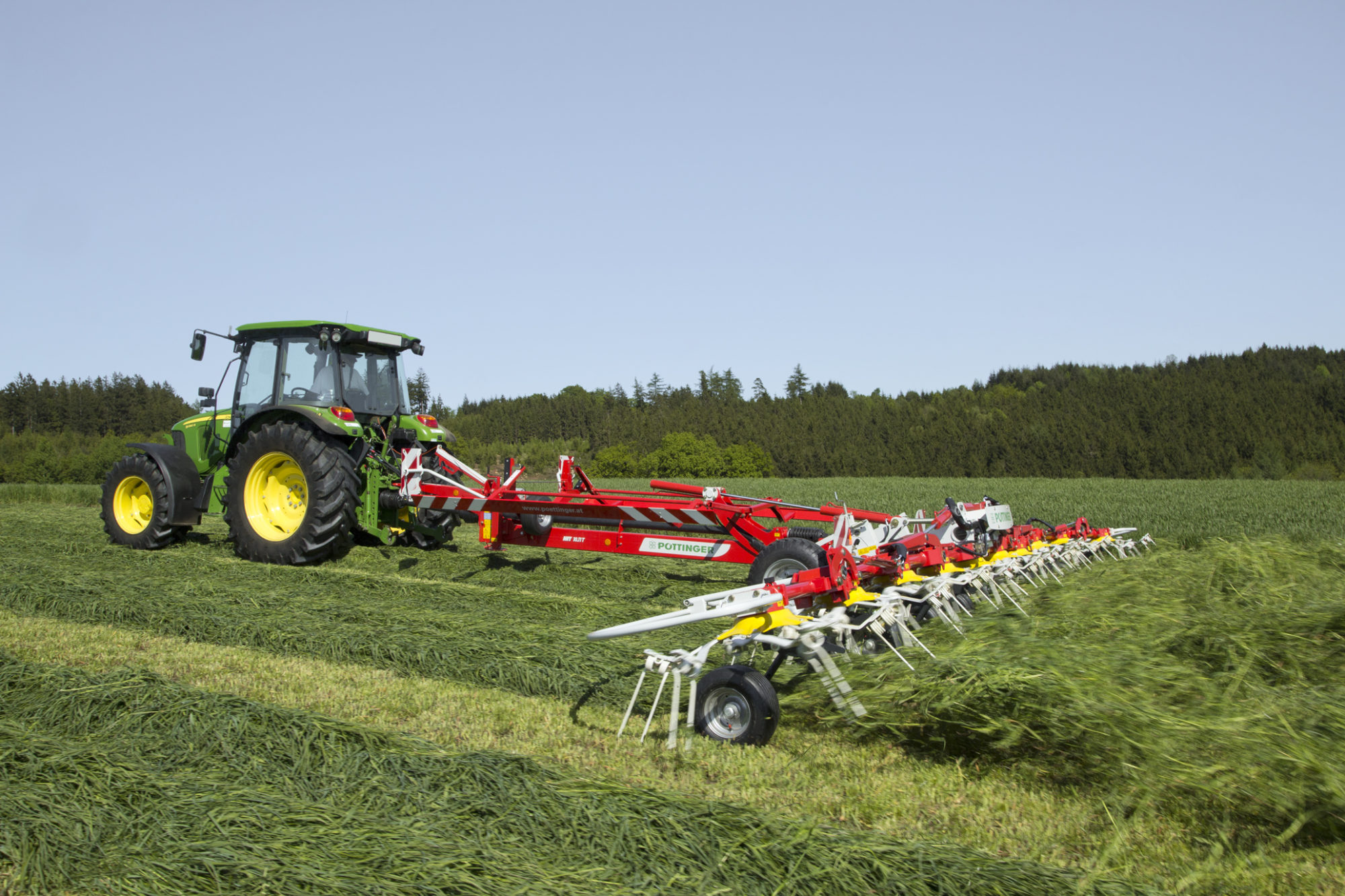

Trailed Rotary Tedders.

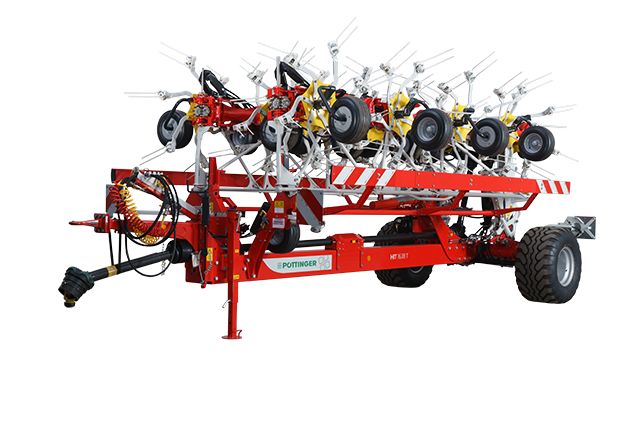

Rotors are pivoted Hydraulically to the rear for transport.

Working Widths from 11m-13.2m

Download Brochure Enquire Now

Product Enquiry: Hit

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Designed for Professionals – High Capacity
  • Heavy Duty Tine security system
  • Asymmetric Tines
  • Overload protection Clutch
  • Tyres 16 x 6, 5 – 8 (Plus 1 x spare wheel)
  • Front Jockey Wheels on both sides – for superior contour following
  • Tine arm support discs ensures tine arms cannot twist
  • High quality powder coated paint finish
  • Wide angle P.T.O shaft (NZ Std Spec)

Specifications

HIT 10.11 T HIT 12.14 T
Width 11.0 m 13.20 m
Working width DIN 10.60 m 12.70 m
Rotors 10 12
Rotor diameter 1.42 m 1.42 m
Tine arms per rotor 6 6
Transport width 2.90 m 2.90 m
Parking height 2.70 m 2.70 m
Transport length 5.60 m 5.60 m
Hydraulic connections 1 S / 1 D 1 S / 1 D
Weight 2095 kg 2375 kg
