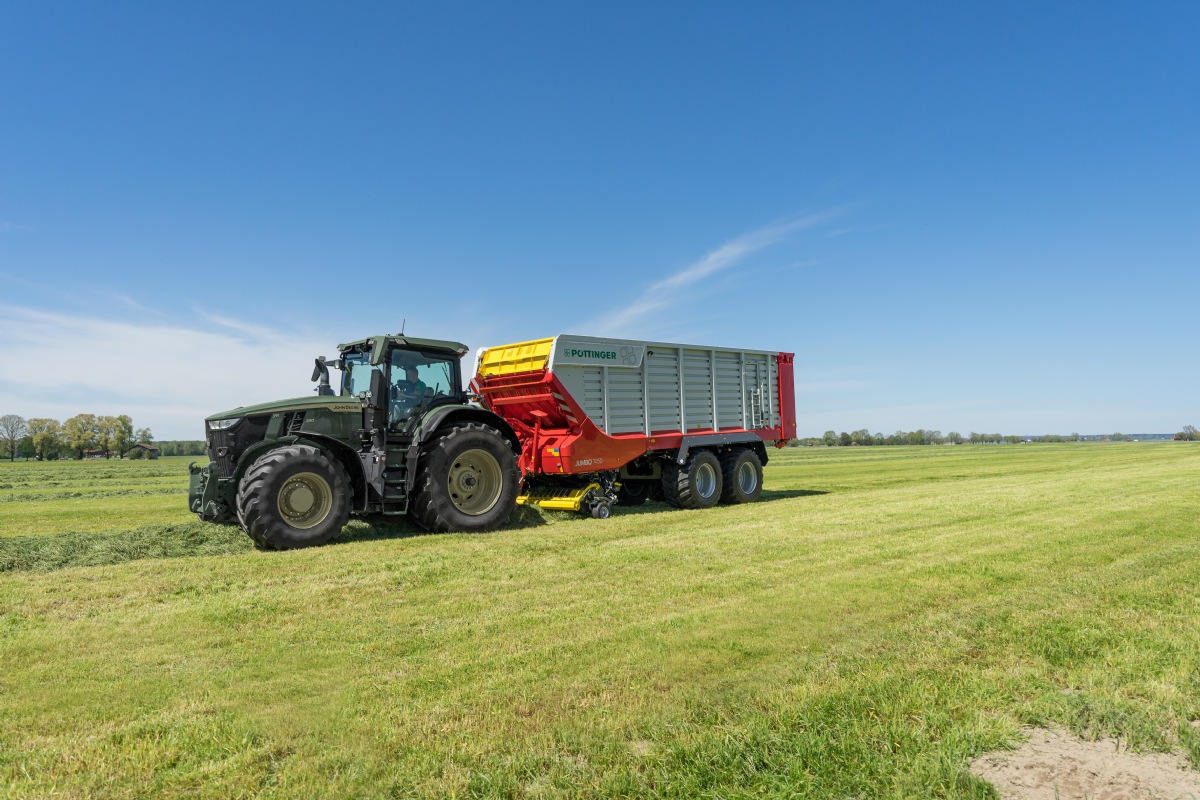

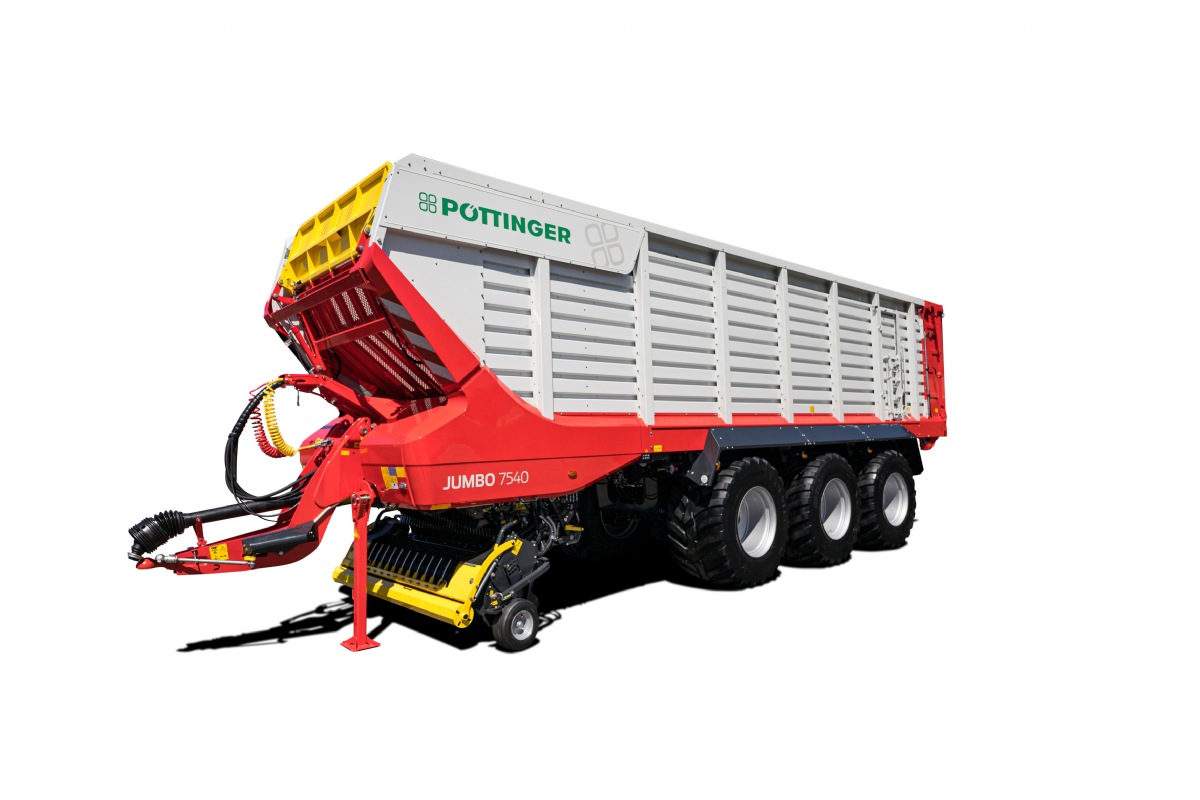

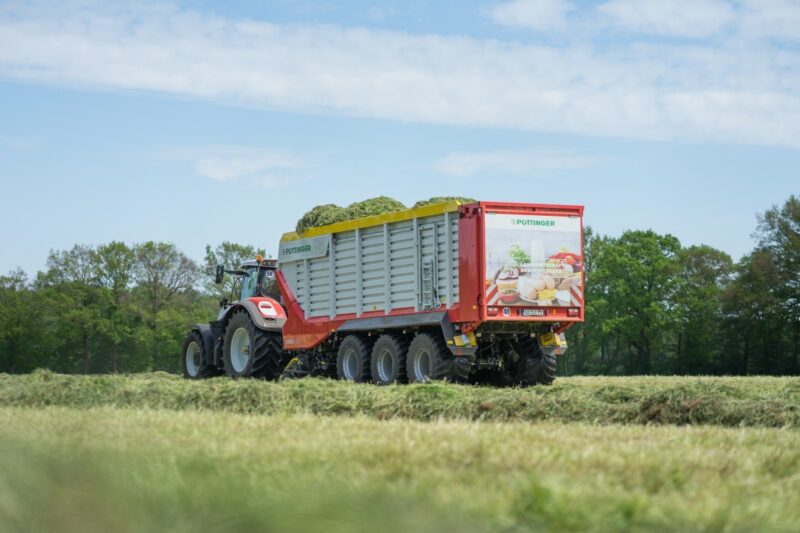

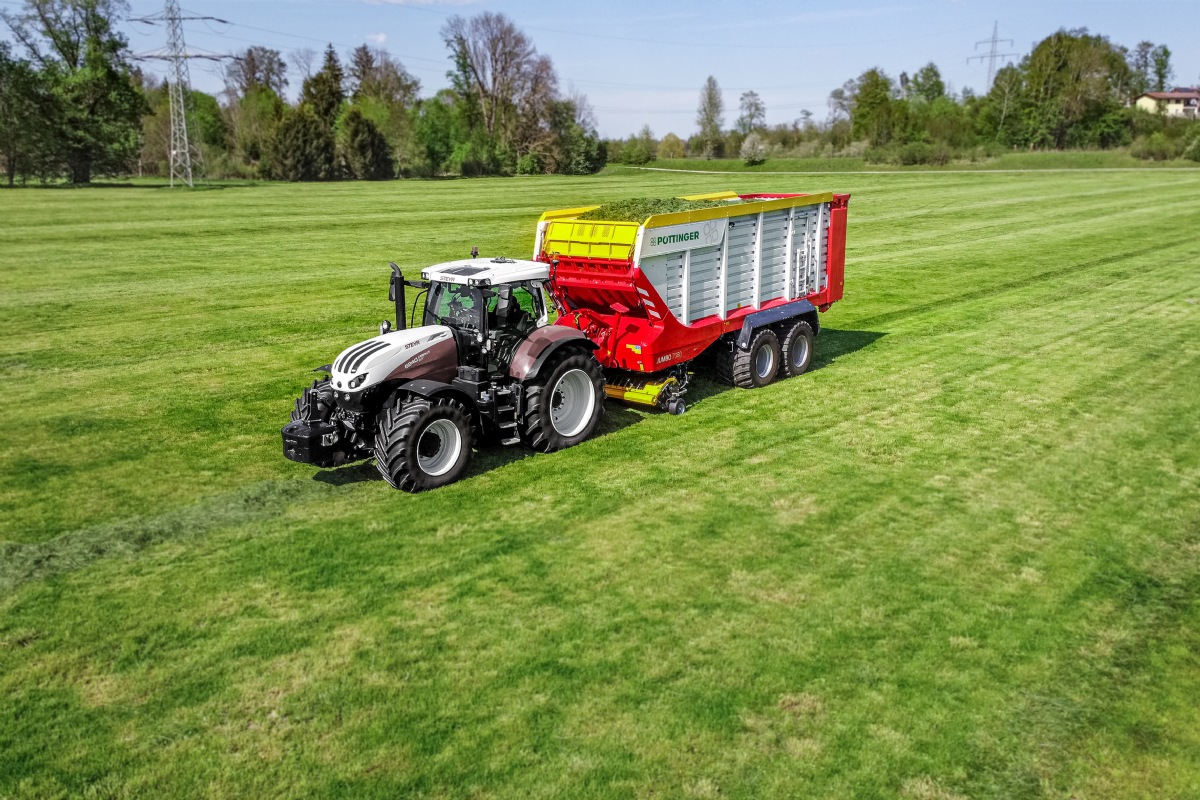

Jumbo

Silage Loader Wagons Rotary Gearbox Driven

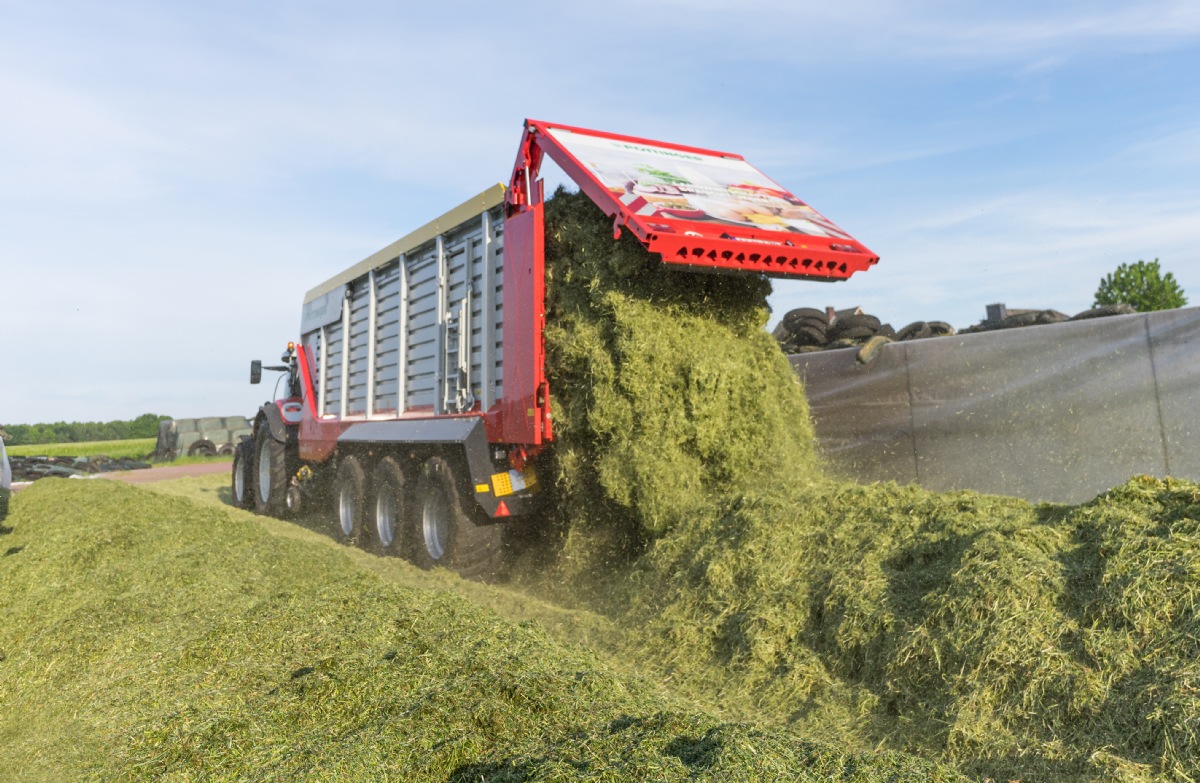

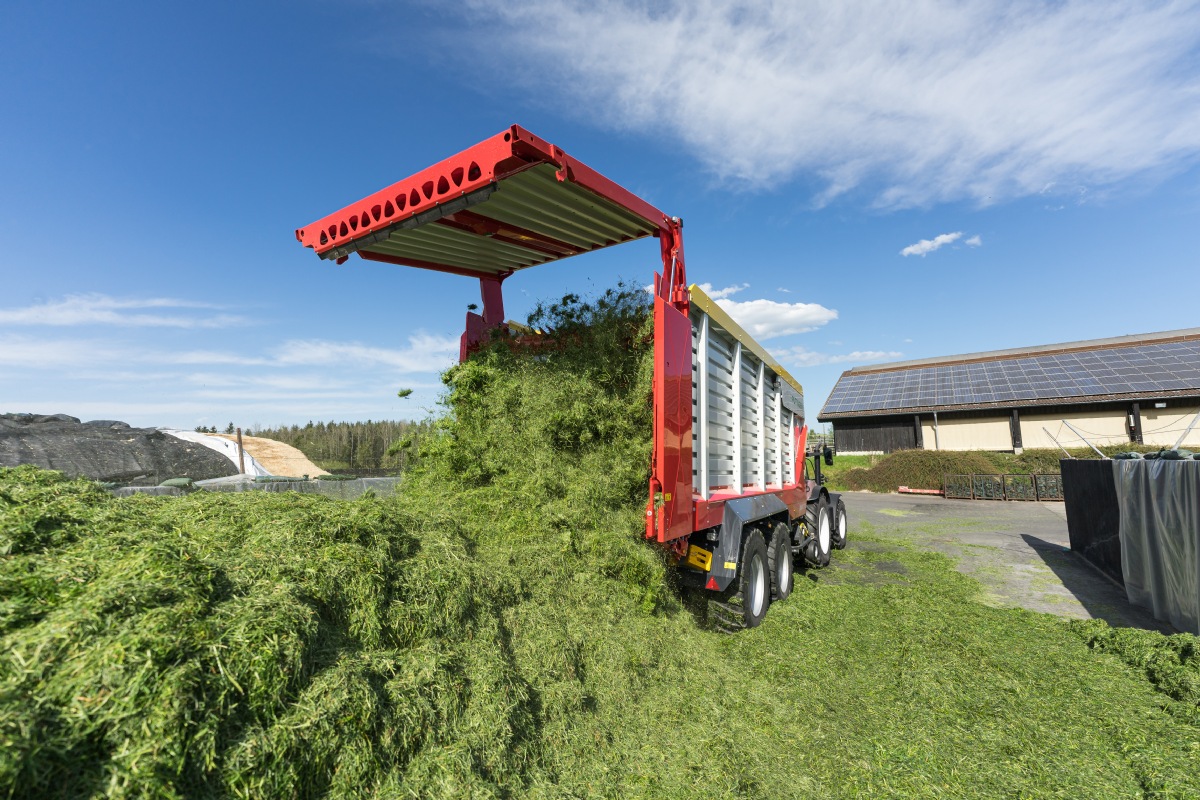

L = Rear Tail Door

D = Rear Beater

160-320 HP

Download Brochure Enquire Now

Product Enquiry: Jumbo

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

  • Easy move pivoting Knife bank and Hydraulic Swing In/Out
  • Pick-up c/w 6 rows of 15 Double tines per row – Huge performance.
  • Swath roller and Floating suspension for max performance
  • Steered pneumatic Pick – Up wheels 16×650-8
  • 800mm ROTOMATIC Spiral compression rotor with 8 rows of fingers
  • 45 Knifes with 34mm Cutting Length – Auto Loading system Standard
  • Wide angle PTO driveshaft with Cam-Clutch 1000RPM 2100Nm Torque
  • Tandem axle with Hydraulic brakes with Self Steer Axle (NZ Std Spec)
  • Scraper floor with 4 x chain drive, infinitely adjustable Forward/Reverse
  • Side access Door with Ladder and Mudguards Standard
  • Metal sections galvanised and powder coated
  • Load Sensing Hydraulics for power saving (NZ Std spec)
  • Low Hitch Drawbar (NZ Std Spec)
  • Power Control Std on “L” Models and “D” Models (ISOBUS compatible)
  • Flood light for loading Chamber standard

Specifications

ModelDin CapacityFull CapacityPick UpTyres NZ Std Spec
6000 L35m360m32.0m650/50 R22.5
6000 D34m360m32.0m650/50 R22.5
6600 L39m366m32.0m650/50 R22.5
6600 D38m366m32.0m650/50 R22.5
