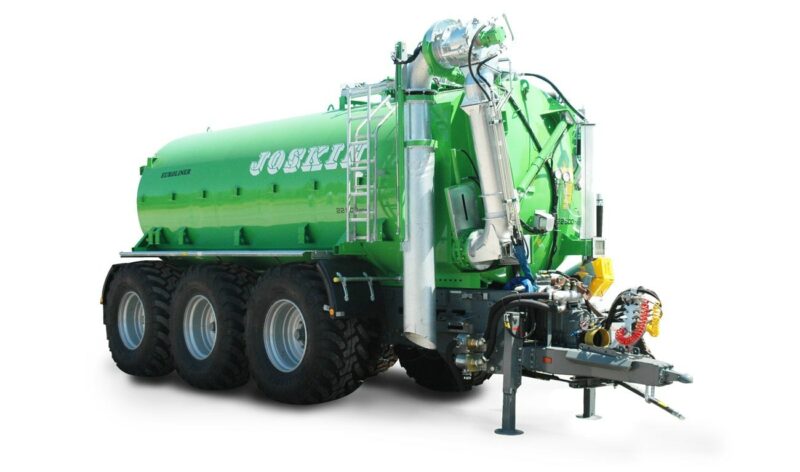

Euroliner

The independent supporting structure is made up of a Universal chassis (300 x 100 x 10 mm) leaning against the tank.

The EUROLINER is designed to be practical both on roads and in the fields. In this respect, this vehicle has an extensive standard equipment aiming at a high safety and driving comfort level, like a double forced steering axle that provides an outstanding driveability and a surprising agility in the field.



** Indent Order Only – Enquires Welcome **

Literage from 16.580L - 28.000L

Download Brochure Enquire Now

Product Enquiry: Euroliner

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

Front lifting axle

Very compact vehicle with 4 parallel wheels (e.g. 650/65R42) for an optimized load distribution in order to reduce ground compaction.

Hitching suspension

The standard hydropneumatic drawbar, together with the Hydro-Tridem concept, ensures an outstanding driving comfort.

Hydro-Tridem

The “Hydro-Tridem” triple-axle concept combines the advantages of the triple axle suspension with leaves (axles that can easily be pulled over obstacles) and the hydraulic suspension (high sensitivity and great 250 mm clearance).

Specifications

Structure width at the running gear 900 (mm)
Max. wheel dimensions Ø 1.820 (mm) / Width 800 (mm) (1)
Running Gear Hydro-Tridem
Hitching suspension Hydropneumatic
Pumping Systems Vacuum
Pumping Tools All types
Rear implements All types (2)

(1) With recessing if necessary – (2) Suited to the dimensions of the vehicle.
