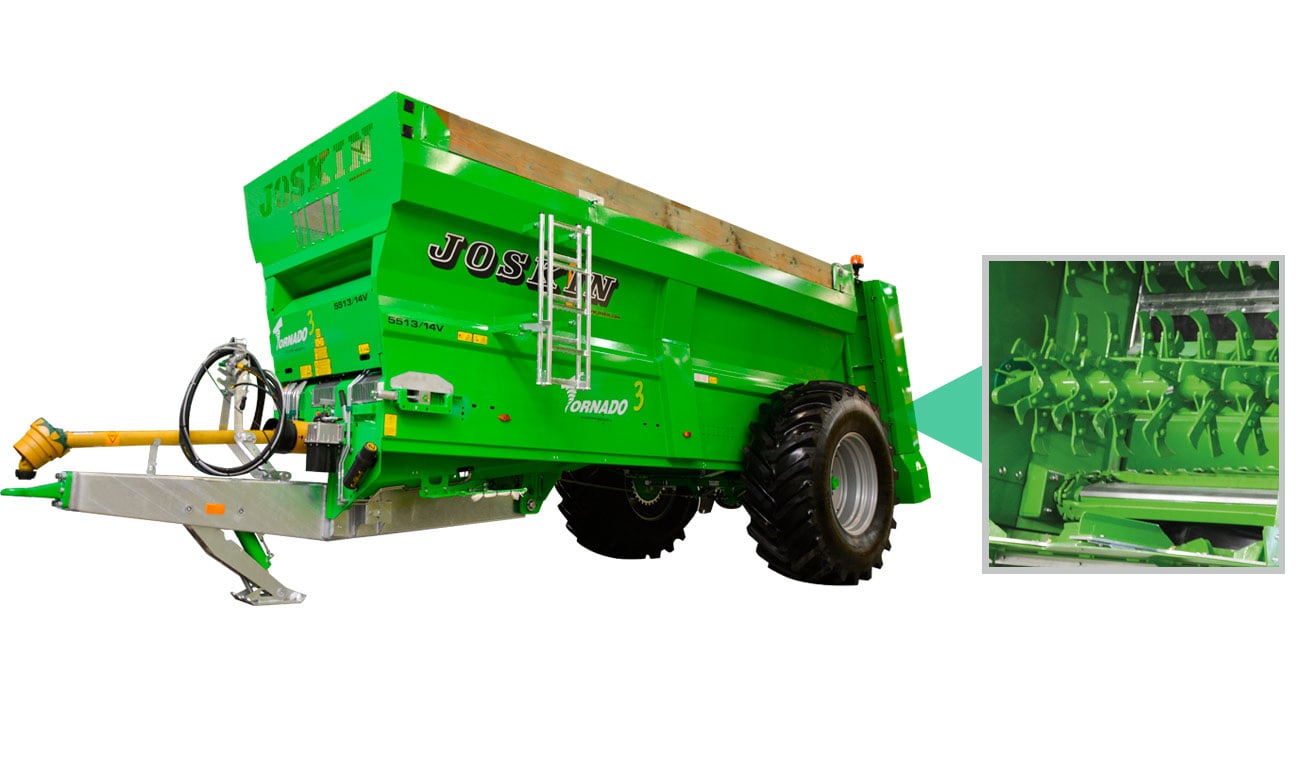

Tornado3 Horizon

The Horizon swinging scatterer l is made up of two horizontal beaters with Ø 600 mm of diameter (rotation: 300 rpm) and with two spreading discs with 1.100 mm diameter (rotation: 425 speed rpm).

The ovoid shape and the entangling of the spreading discs allow their integration in 1.100 mm on a narrow body. This large diameter and their perfect synchronization with the horizontal beaters allow a wide and homogeneous spreading.

The inside of the canopy is padded to prevent the matter to agglomerate against the rear wall.

13-15 Tonne

Download Brochure

Enquire Now

Product Enquiry: Tornado3 Horizon

Name*
First Last
Email*
Phone*
Enquiry*
Preferred Dealer*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

Features

Transmission

The beaters are driven by P.T.O.-shafts (1,000 rpm), the Horizon swinging scatterer is made up of two horizontal beaters with Ø 600 mm of diameter (rotation: 300 rpm) and with two spreading discs with 1.100 mm diameter (rotation: 425 rpm).

High tensile steel

The body in high tensile steel makes it possible to reach – thanks to successive folds of the plate – a high resistance while avoiding the lateral reinforcement and reducing the empty weight of the machine.

Moving floor

Moving floor with shipping chain with grade 80 (the highest grade in traction chains currently existing);
The moving floor is fitted with side and central tensioners that are easily accessible.

Hitching cross-suspension

Whatever the type of ground, the fitting of parabolic leaves offers a high lateral stability and driving comfort, without distortion of the traction line.

Specifications

Drawbar suspension	Cross-suspension with parabolic leaves
Moving floor	2 Ø 16 mm shipping chains
Vertical beaters	Ø 600 mm, 1.400 mm height
Teeth	Removable, in S700MC steel (230 x 50 mm)
Discs	Ø 1.100 mm with discs with 3 blades
Drive	1.000 rpm
Beater rotation speed	300 rpm
