NovaDisc

Rear Mounted Disc Mowers and Conditioners

Cutting Widths from 2.20 - 3.46m

Download Brochure Enquire Now

Product Enquiry: NovaDisc

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

  • Belt drive/End Pivot/ Sprung Suspension

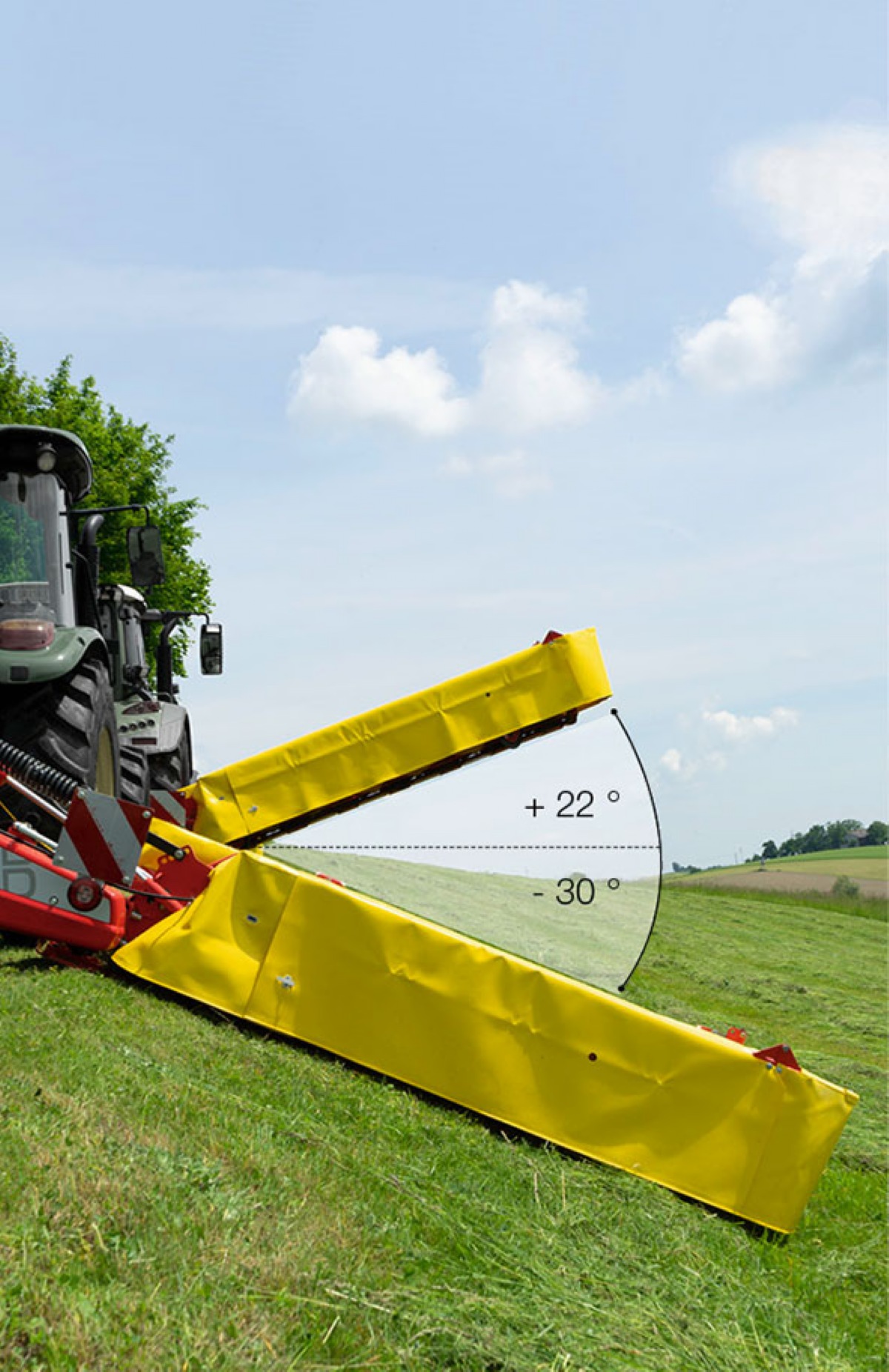

  • Vertical Folding of 115degrees
  • No Inner Skid – Gearbox behind the first disc – No blockages

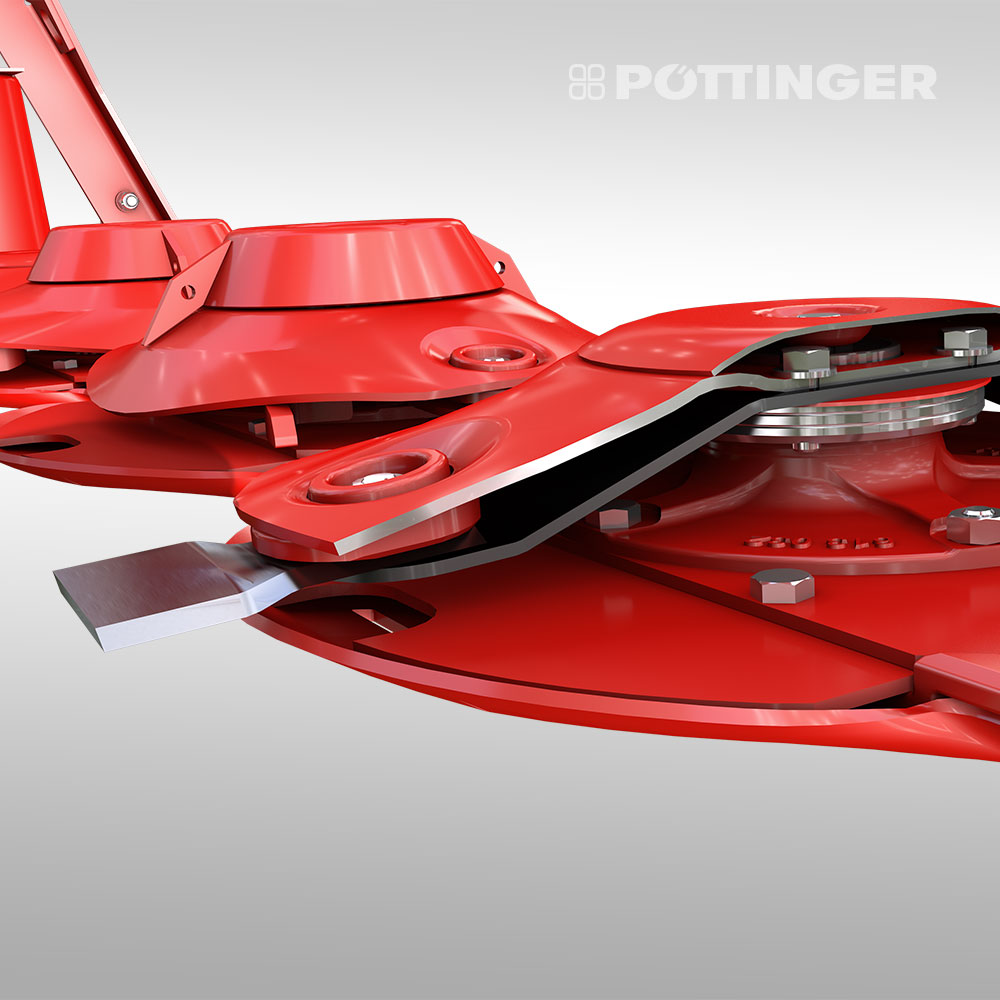

  • Quick Change blades – quick and easy blade changing
  • Fully welded cutter-bar – Made from high-quality steel extremely strong
  • Large-sized cutter-bar gears, results in more gear teeth in contact
  • Double race ball bearings – long life
  • Same cutter-bar as professional NOVACAT models
  • Hydraulic cutter-bar lift ram – protects swath and simple operation

Specifications

MODEL CUTTING WIDTH (M) No. DISC’S P.T.O HP
Novadisc 222 2.20m 5 540 (6 Spline) 40hp
Novadisc 262 2.62m 6 540 (6 Spline) 50hp
Novadisc 302 3.04m 7 540 (6 Spline) 60hp
Novadisc 352 3.46m 8 1000 (21 Spline) 70hp
