NovaCat

Double Rear Disc Mower / Conditioner

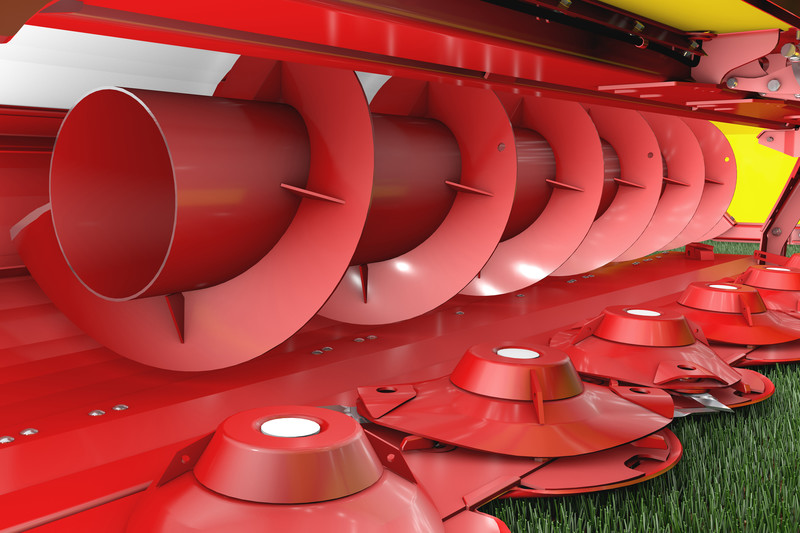

ED = Finger / RC = Roller / CF = Cross Flow

Professional Double Rear Mounted Mower/Conditioner use in combination with Front Mounted mower (Alpha Motion – Add separate)

Cutting Widths from 8.8m - 10m

Download Brochure Enquire Now

Product Enquiry: NovaCat

Name(Required)
This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • Direct Control terminal (Power Control Std with Collector Version)
  • All shaft Gearbox Drive Transmission – No inner skids
  • Pendulum mounted cutter bar – For optimum flotation
  • Quick Change blades – quick and easy blade changing
  • Conditioners can be easily removed or fitted in minutes
  • Conditioners can be easily removed or fitted in minutes
  • Load Sensing Hydraulics (Open Centre Optional)
  • Hydraulic Breakaway Safety Device
  • Extra protection wear skids fitted (NZ Std Spec)

8.8m – 10m Cutting Width – with 3.0m Front Mower

9.18m – 9.98m Cutting Width with 3.5m Front Mower

Specifications

MODEL CUTTING WIDTH TYPE HP RATED BLADES DISCS TRANSPORT WIDTH / HEIGHT
Novacat 8400 8.12 – 8.36m Disc Mower 120 HP 28 14 2.85m / 3.6m
Novacat 8400 ED 8.12 – 8.36m Finger Conditioner 150 HP 28 14 2.85m / 3.6m

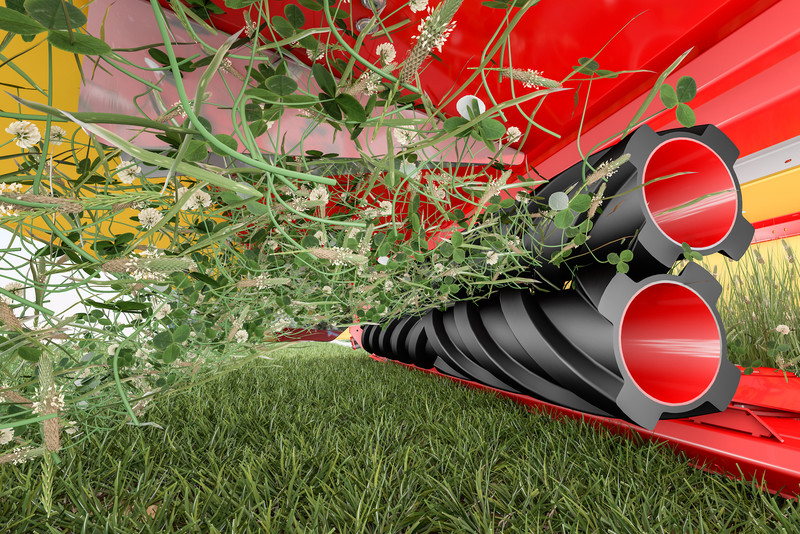

Novacat 8400 RC 8.12 – 8.36m Roller Conditioner 150 HP 28 14 2.85m / 3.6m

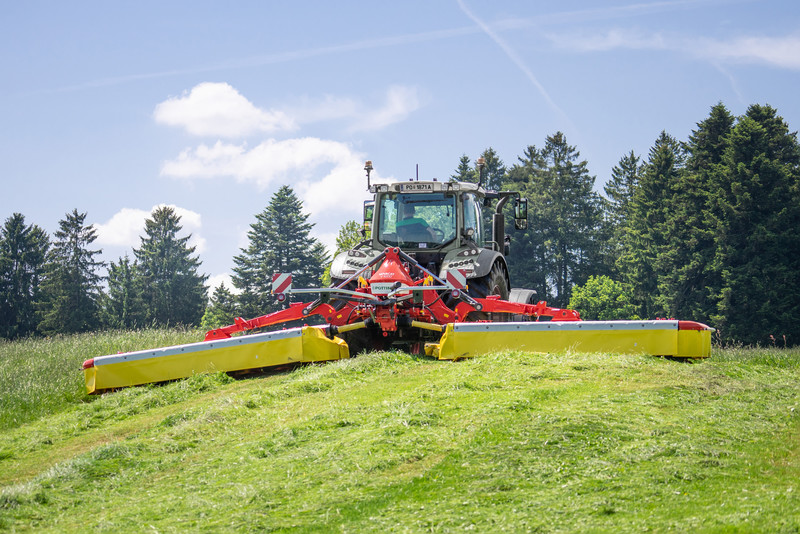

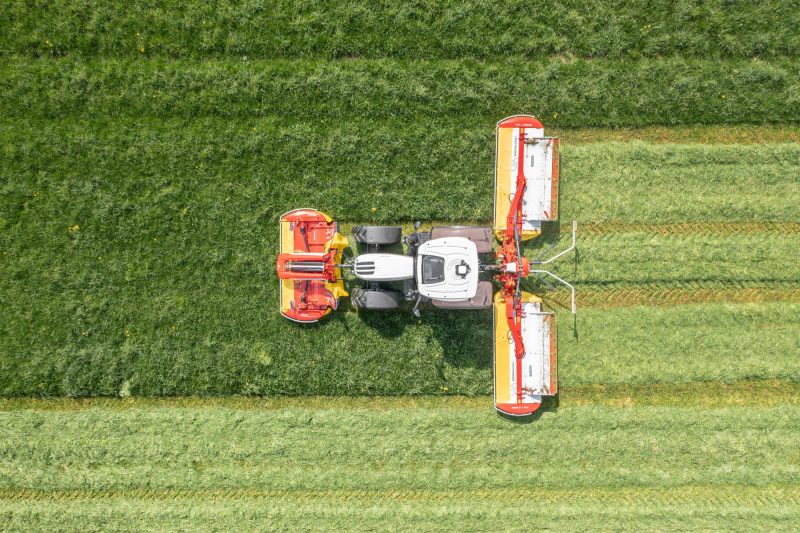

Novacat V 9200 8.95 – 9.20m Disc Mower 140 HP 32 16 2.87m / 3.99m
Novacat V9200 ED 8.95 – 9.2m Finger Conditioner 160 HP 32 16 2.87m / 3.99m
Novacat V 9200 RC 8.95 – 9.2m Roller Conditioner 160 HP 32 16 2.87m / 3.99m

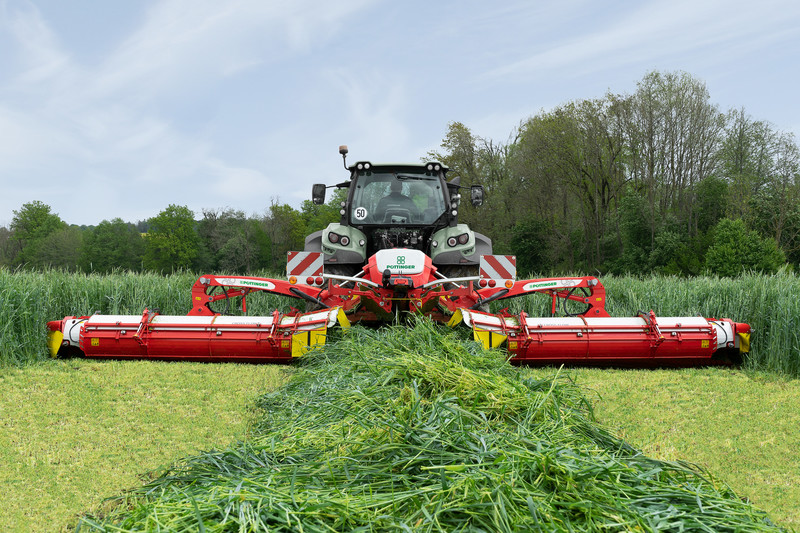

Novacat V 9200 CF 8.95 – 9.2m Cross Flow 150 HP 32 16 2.87m / 3.99m
Novacat V 10000 8.8 – 10.02m Disc Mower 140 HP 32 16 2.75m / 3.99m
Novacat V 10000 ED 8.8 – 10.02m Finger Conditioner 180 HP 32 16 2.75m / 3.99m
Novacat V 10000 RC 8.8 – 10.02m Roller Conditioner 180 HP 32 16 2.75m / 3.99m
Novacat V 10000 CF 8.8 – 10.02m Cross Flow 160 HP 32 16 2.75m / 3.99m

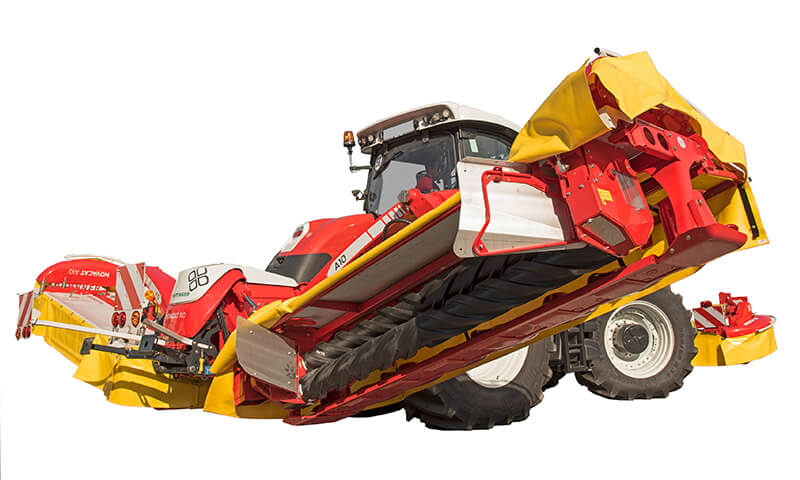

Novacat V 10000 ED CL 8.8 – 10.02m Finger Conditioner / Collector 220 HP 32 16 2.75m / 3.99m
Novacat V 10000 RC CL 8.8 – 10.02m Roller Conditioner / Collector 220 HP 32 16 2.75m / 3.99m
