Features
Narrow chassis
JOSKIN developed a narrow chassis that allows the Trans-KTP to fit with wide wheels (710mm), while not exceeding a total width of 2,550 mm. It also provides a larger steering angle and can be equipped with a more efficient braking system. With the front cylinder, the safety and stability of the vehicle are as effective as in standard position.

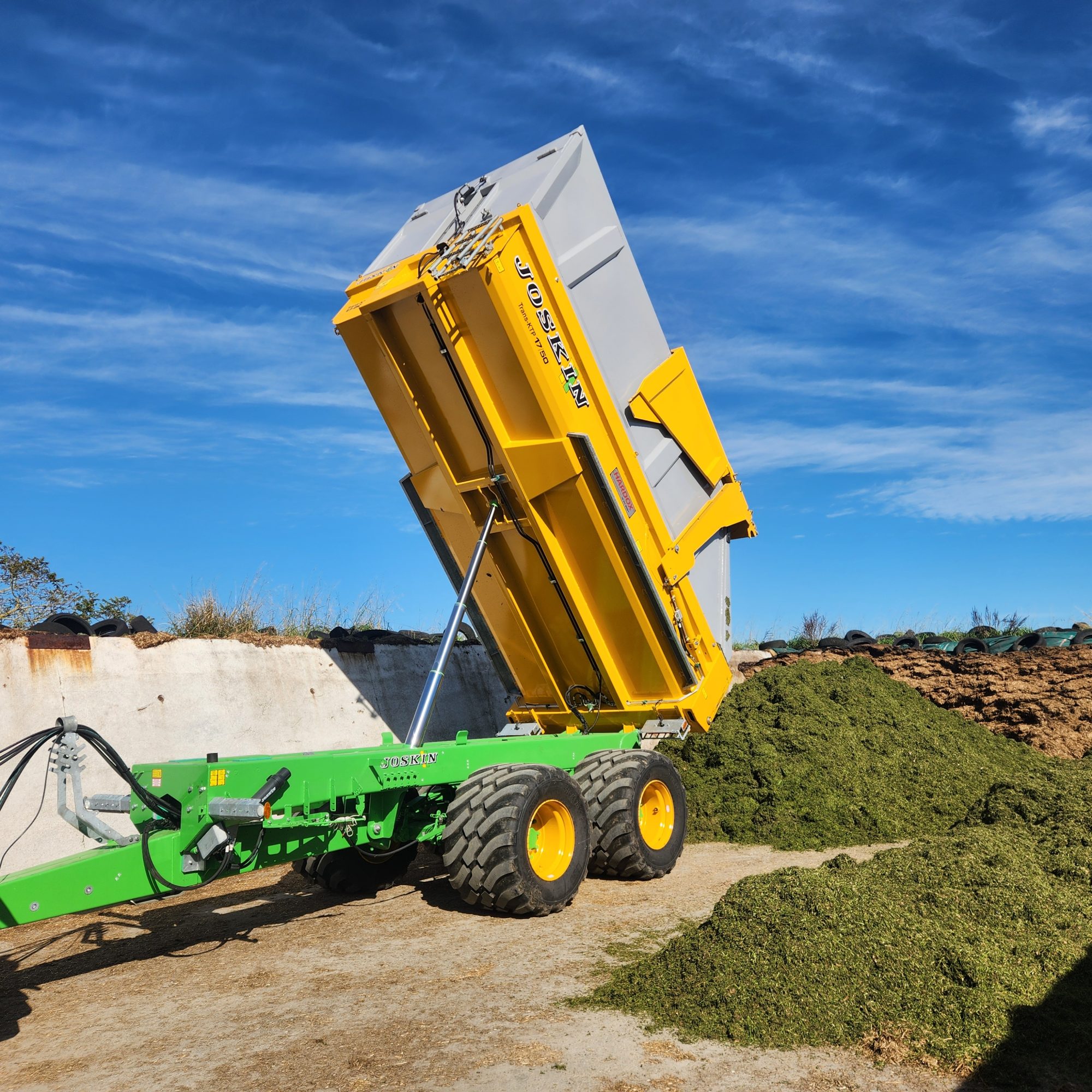

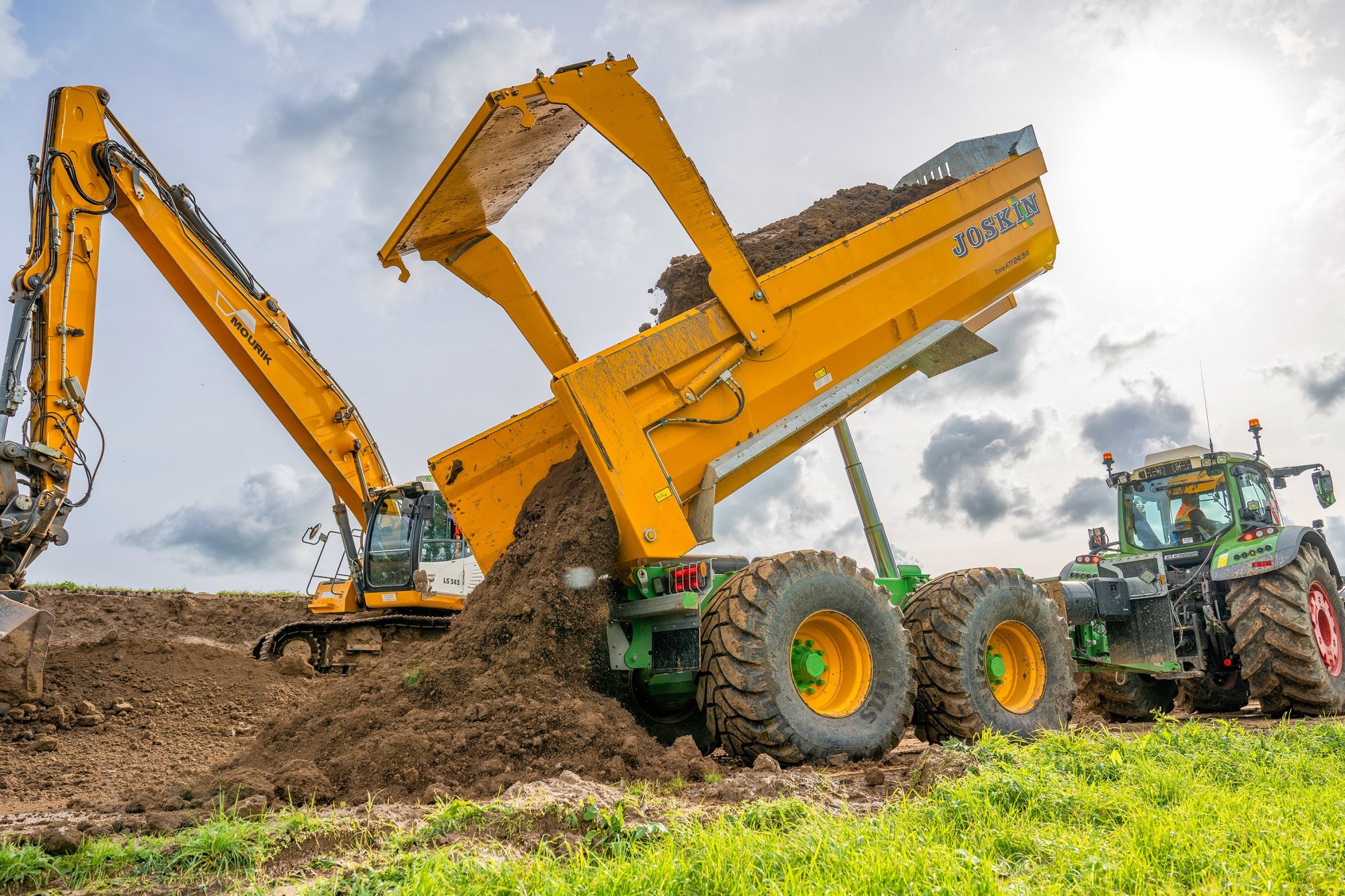

Safe Tipping

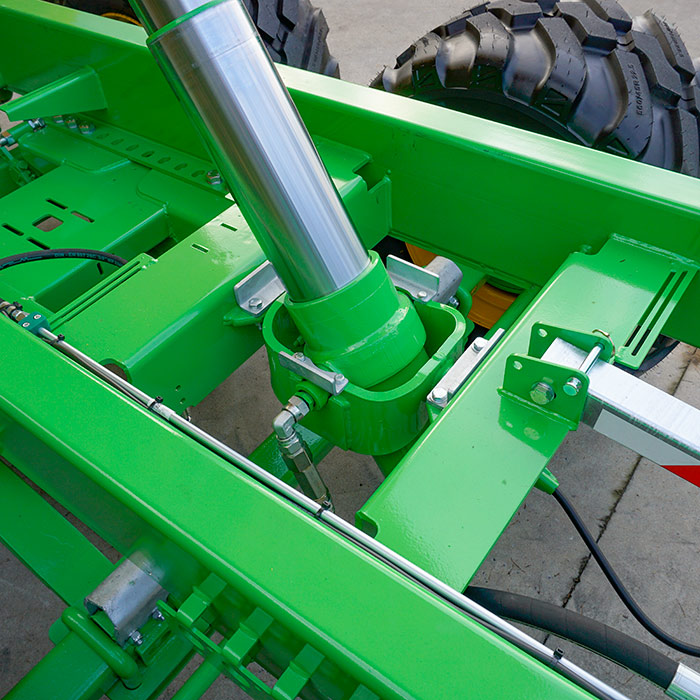

The telescopic tipping ram is mounted on a double oscillating frame fitted with greased bearings and integrated in the chassis at a more forward position. This system compensates the torsions due to the tipping strains and effectively protects the ram and body from distortions. The body tipping is also ensured by the two robust hinges including bolted axis with large diameter. The back- and upwards position of the hinges increases the unloading height.
Standard mounted, a safety valve, which is directly placed on the tipping ram, prevents the body from unexpectedly falling down (e.g. when hydraulic hoses break).

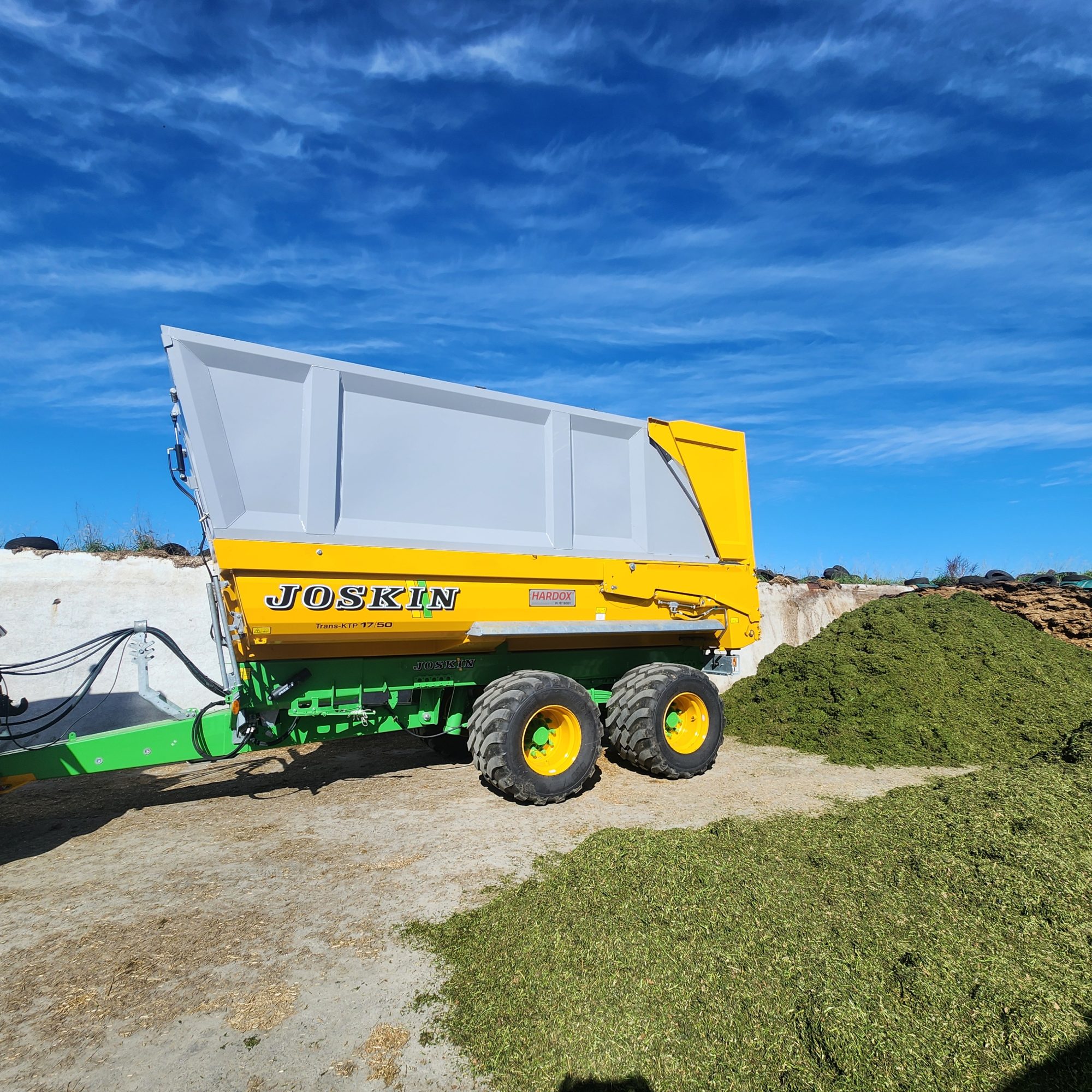

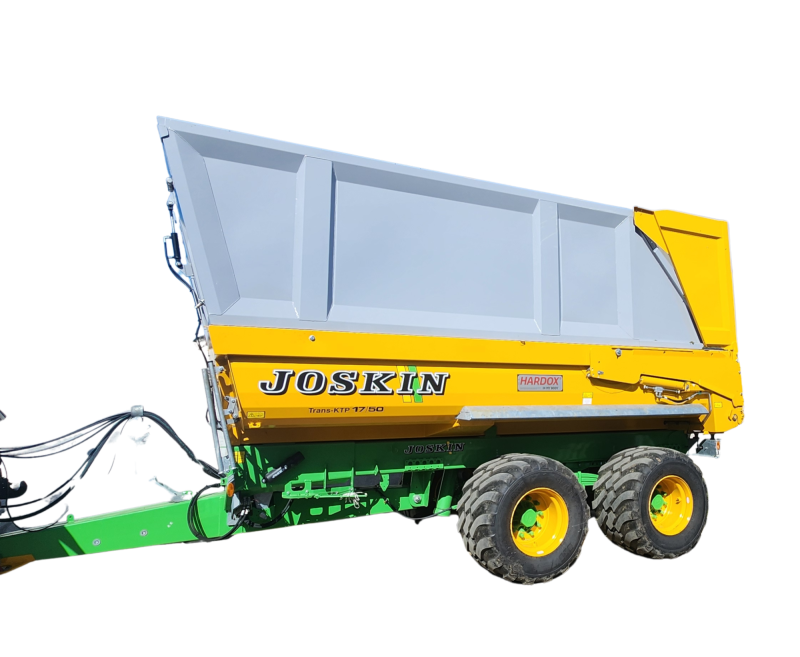

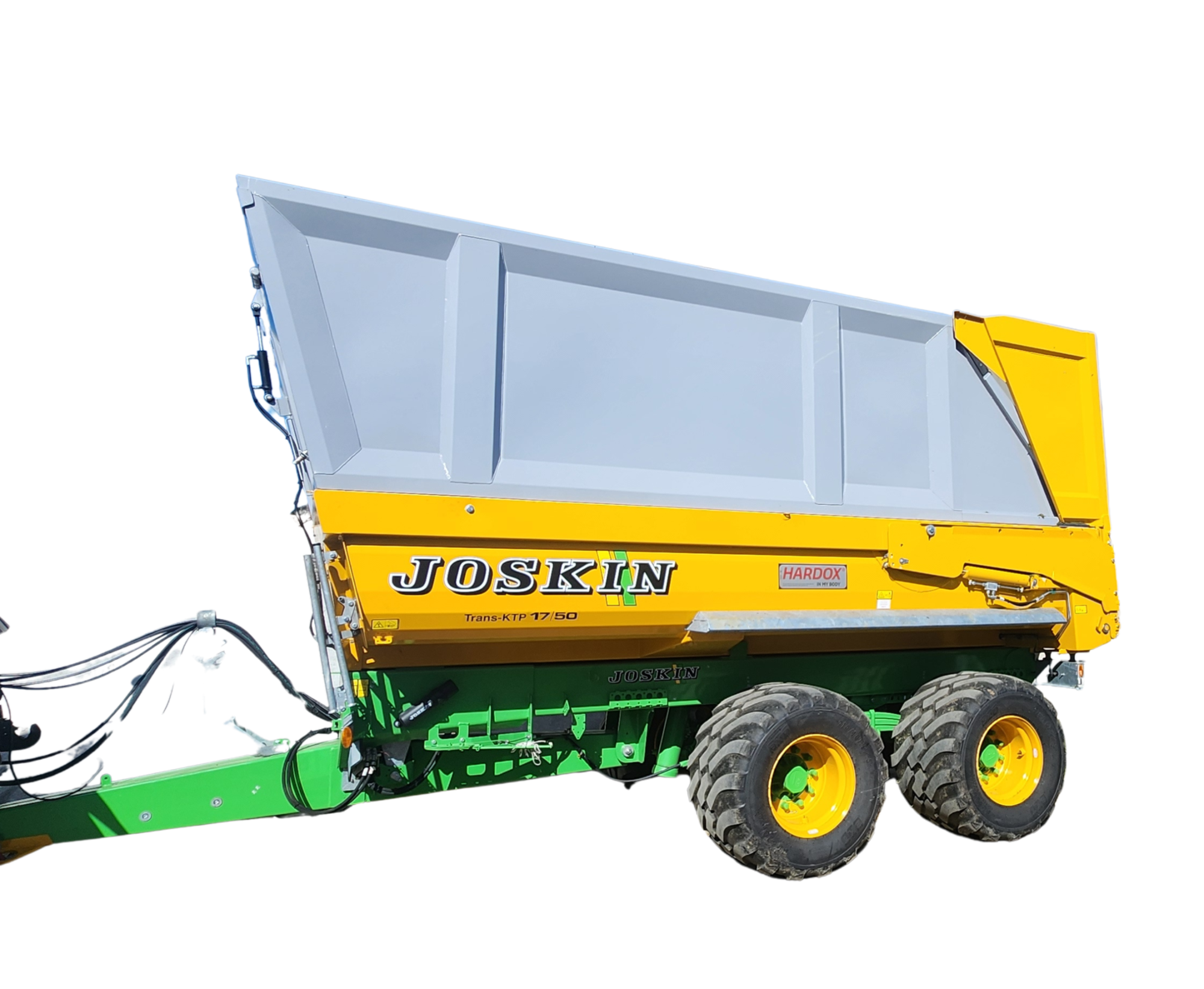

Tapered, Light and Strong Body
The bodies of the JOSKIN Trans-KTP construction trailers are made fully of high tensile steel of the HARDOX 450 type, which has very interesting tensile properties, as it takes its initial shape back after deformation. Compared to traditional steel, its tensile limit is indeed 4 to 5 times higher. All bodies, including the doors, are manufactured with 2 steel sheets, without any linking cross-weld. Thanks to this manufacturing process, the empty weight of these tipping trailers is significantly lower and therefore allows transportation of higher payloads, without compromising on sturdiness.
The tapered shape of the body makes sure the contents of the trailer flow out freely.
This unmatched property is further reinforced by the successive folds aiming at smoothing off the edges of the body.
Tipping accessories
It is also possible to choose a front tipping ram instead of the one under the body on the front part of the chassis. This option requires a galvanized headboard in order to protect the ram.
An industrial hydraulic pump (150 l/min) with electric tipping and lowering control (1,000 rpm) can replace the tipping function directly connected to the hydraulic system of the tractor. This pump has a “quick lowering” function.
