EOS

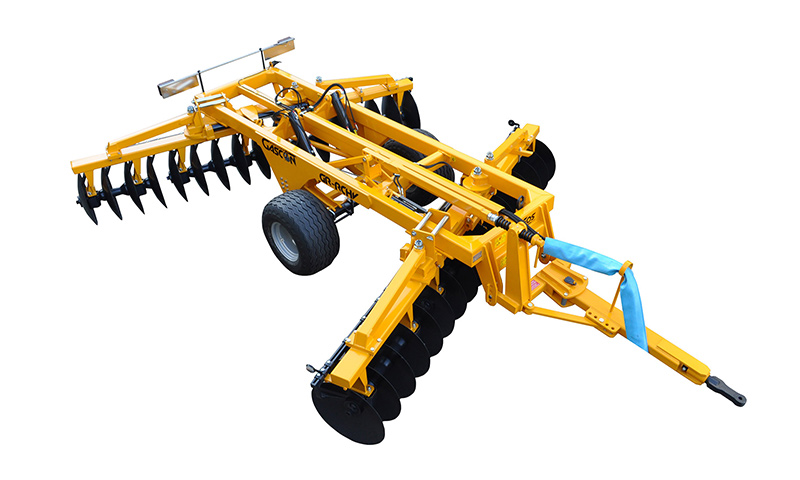

EOS Offset Hydraulic folding frame disc harrows

Working Widths From 4m - 4.5m

Download Brochure Enquire Now

Product Enquiry: EOS

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

Features:

  • Strong 3x frame RHS chassis made from high quality steel
  • 1st main frame 150 x 100 x 8mm / 2nd frame 200 x 100 x 10 RHS
  • 3rd Disc frame 180 x 100 x 8mm strong RHS box section
  • Extra large 500/50-17″ flotation tyre’s (STD) with hydraulic depth control
  • H/duty grease-able tapper roller bearings – water and dust-proof for longer life
  • 40 x 40mm disc axle shafts and cast iron disc spacers
  • Hydraulic self leveling ram and stabilizer bar for undulating ground
  • Superior powder-coated paint finish
  • Hydraulic disc angle adjustment front/rear (Fitted standard)
  • Outside leveling disc acts as furrow filler for level finish (STD)
  • Bearing housing protectors
  • High quality European 26″  8mm disc’s scalloped front/rear
  • Optional plain discs available on request

Specifications

Model Working/ Transport Width No. Discs Weight HP min/max Disc Spec
HYDRAULIC FOLDING FRAME 26″ DISCS
GR-RCHV405-34/8 4.05m/2.5m 34 4470kg 150-240 HP 660 x 8mm (26″)
GR-RCHV455-38/8 4.55m/2.5m 38 4790kg 170-240 HP 660 x 8mm (26″)
