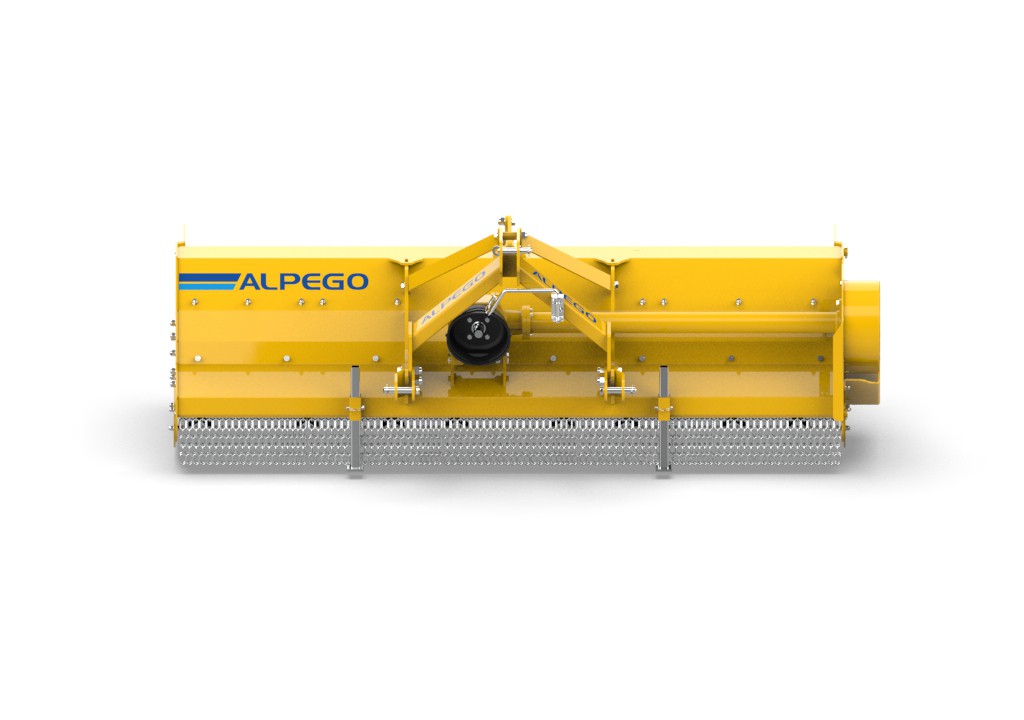

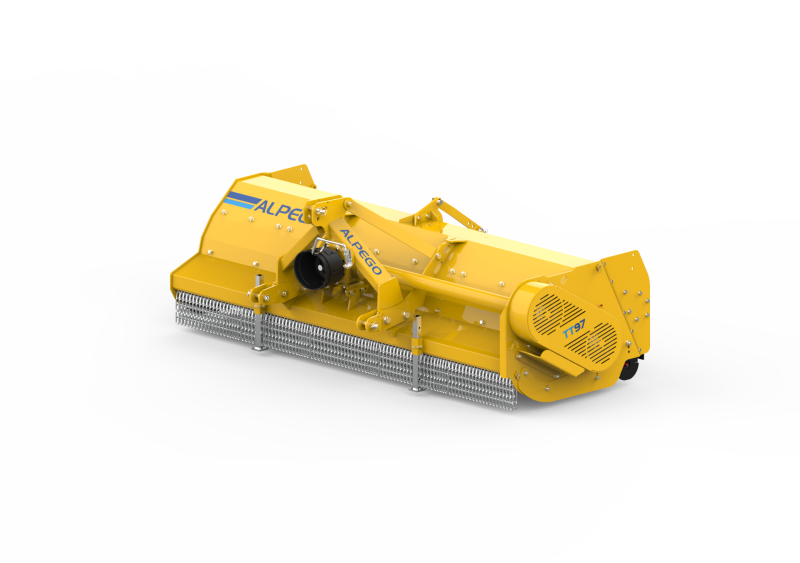

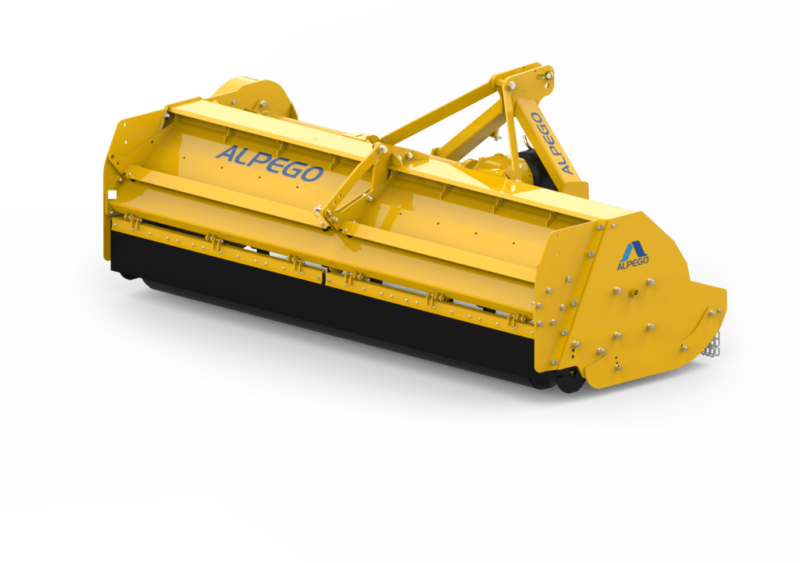

TT97

2.8m – 3.2m working width

2.8m - 3.2m working widths

Download Brochure Enquire Now

Product Enquiry: TT97

  • This field is for validation purposes and should be left unchanged.

Categories: , Brand:

Features

  • 80-160HP Heavy Duty Mulchers
  • High body clearance and large rotor for heavy working conditions
  • Rear opening adjustable hood – for discharge in heavy conditions
  • Ideal for mulching – Straw – Maize – Grass – etc
  • Straw deflector vanes – fitted standard
  • Free wheel clutch inside oil filled gear box – 540 RPM
  • Quality 5x cog belt drive for maximum power transfer
  • Hardened spring steel “Y” flails (STD) – will mulch up to 75mm
  • Optional cast steel hammers for smooth finish
  • Front chain guards – Standard NZ Spec
  • Double plated wear proof skin
  • High speed rotor – provides excellent grass cutting finish
  • CAT II 3pt linkage mounting – Manual bolted offset adjustment
  • Adjustable skids for height control (STD), optional rear wheels or roller
  • Counter knives for mulching (STD) – recommended for straw and maize

OPTIONS

  • Hammer flails (in lieu of “Y” flails)
  • Hydraulic ram for rear door open/close

Specifications

MODEL WORKING WIDTH OVERALL WIDTH No. Y BLADES HP RATED INDENT ORDER ONLY BASIS
TT97 – 280 2.8m 3m 60 80-160hp
TT97 – 300 3m 3.2m 64 90-160hp *
TT97 – 320 3.2m 3.4m 68 100-160hp
