DMAX

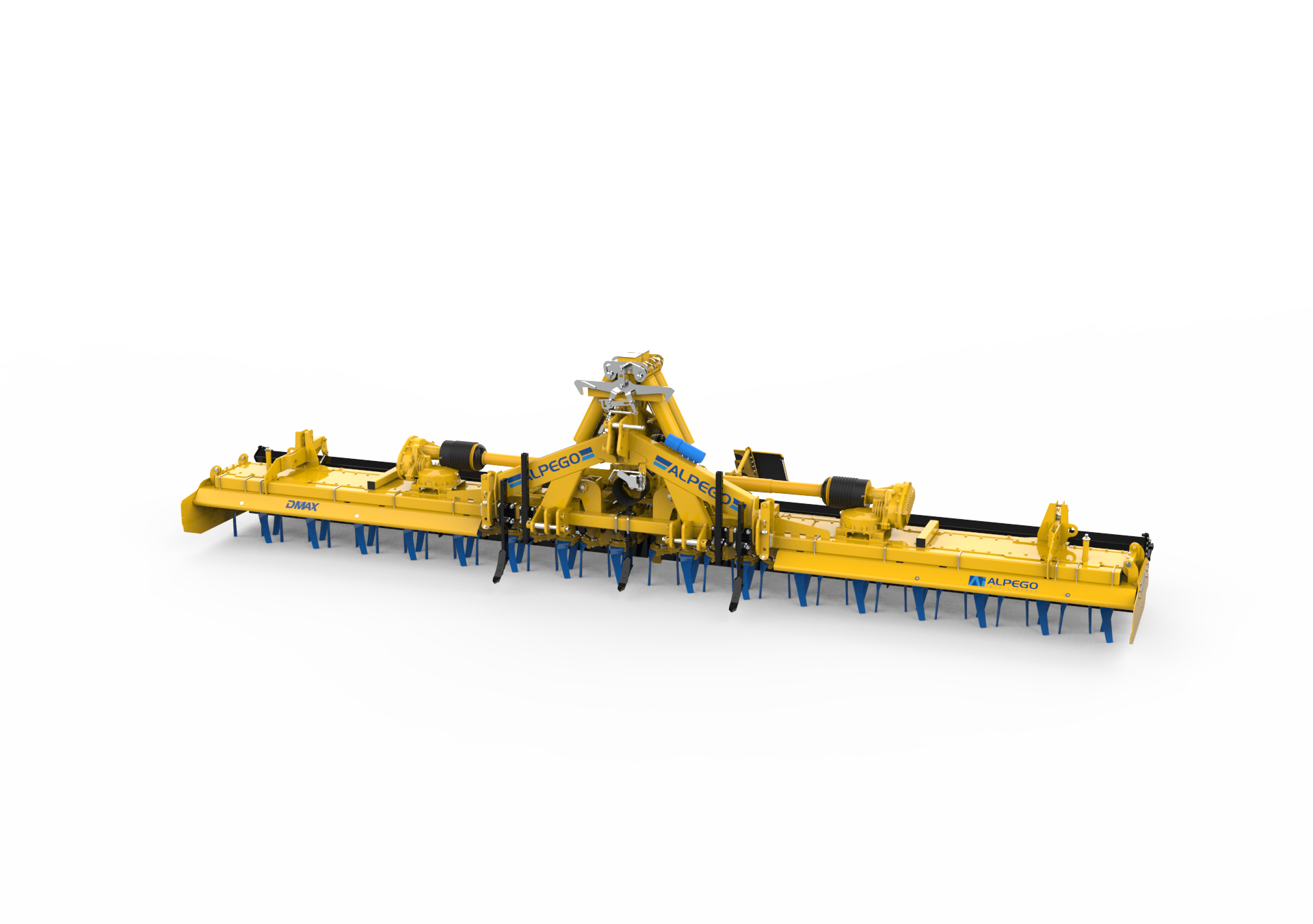

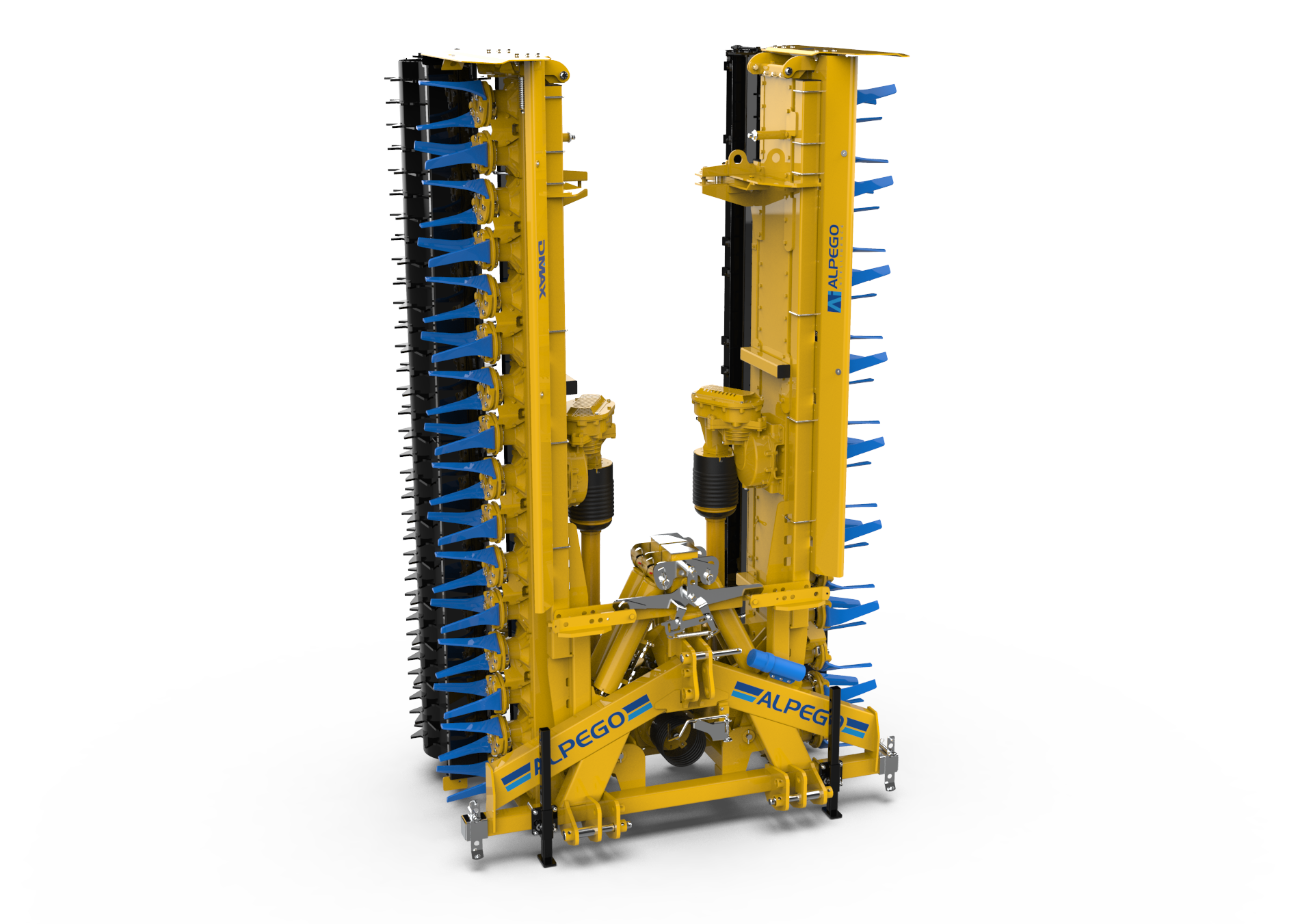

The Rotodent DMAX is a folding power harrow unique in its category. Its strong point is the TWIN-FORCE “maX” mechanical peculiarity and its heavy-duty structure.

180 - 500 HP

Download Brochure Enquire Now

Product Enquiry: DMAX

  • This field is for validation purposes and should be left unchanged.
Categories: , Brand:

Features

  • 1000 Rpm central drive /min.
  • Linkage cat.3 + 4, oscillating and 4 USA ( for DmaX-800)
  • Central track eraser
  • Supporting legs
  • Leveling board on the roller. Independently adjustable
  • Multispeed lateral gearboxes, rotor shaft rotating at Z=29/25 (368 rpm) Z=30/24 (396 rpm)
  • Central drive shaft 1″3/4 Z=20
  • Lateral driveshafts with automatic cam clutch
  • Drop-Forged tines (STANDARD + RAPIDO Version)
  • Electronic hour-counter

OPTIONS

  • Track eraser pair

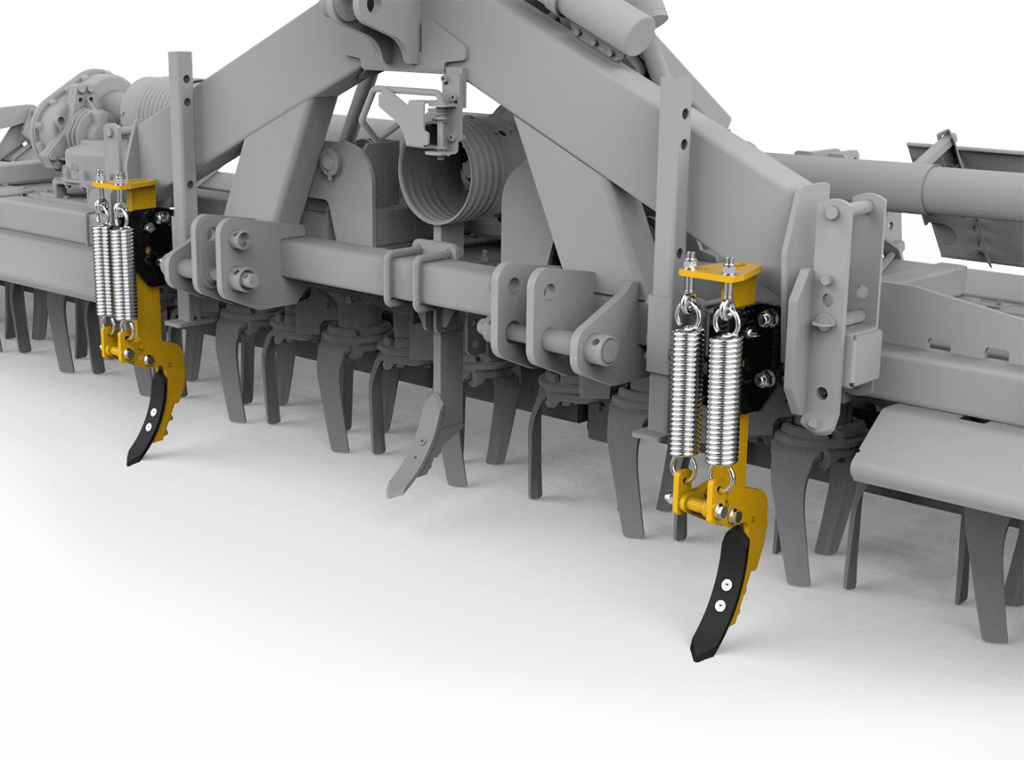

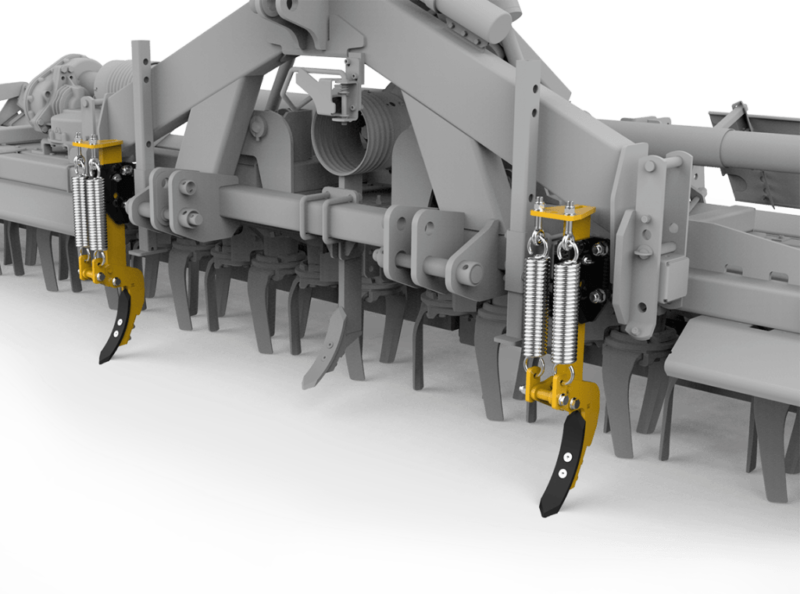

  • NO-STOP Track eraser pair
  • Hydraulic depth adjustment
  • Hydraulic carrier for mounting a seed drill
  • Drop forged tines
  • Kit for quick release of forged tine
  • Packer roller

Specifications

Model HP WORKING WIDTH TRANSPORT

WIDTH

WORKING

DEPTH

N. ROTORS N. TINES
DMAX 500 180-440 5m 2500 300 20 20+20
DMAX 600 200-440 5.9m 2500 300 24 24+24
DMAX 700 250-500 6.9m 2500 300 28 28+28
DMAX 800 250-500 7.8m 2500 300 32 32+32
